Today me and me new employee worked on a 2011 Nissan 370z. IT was COLD and it SNOWED but he stuck through it and learned a lot.

Already hard at work! We both took a door and he mirrored what I did to the other one.

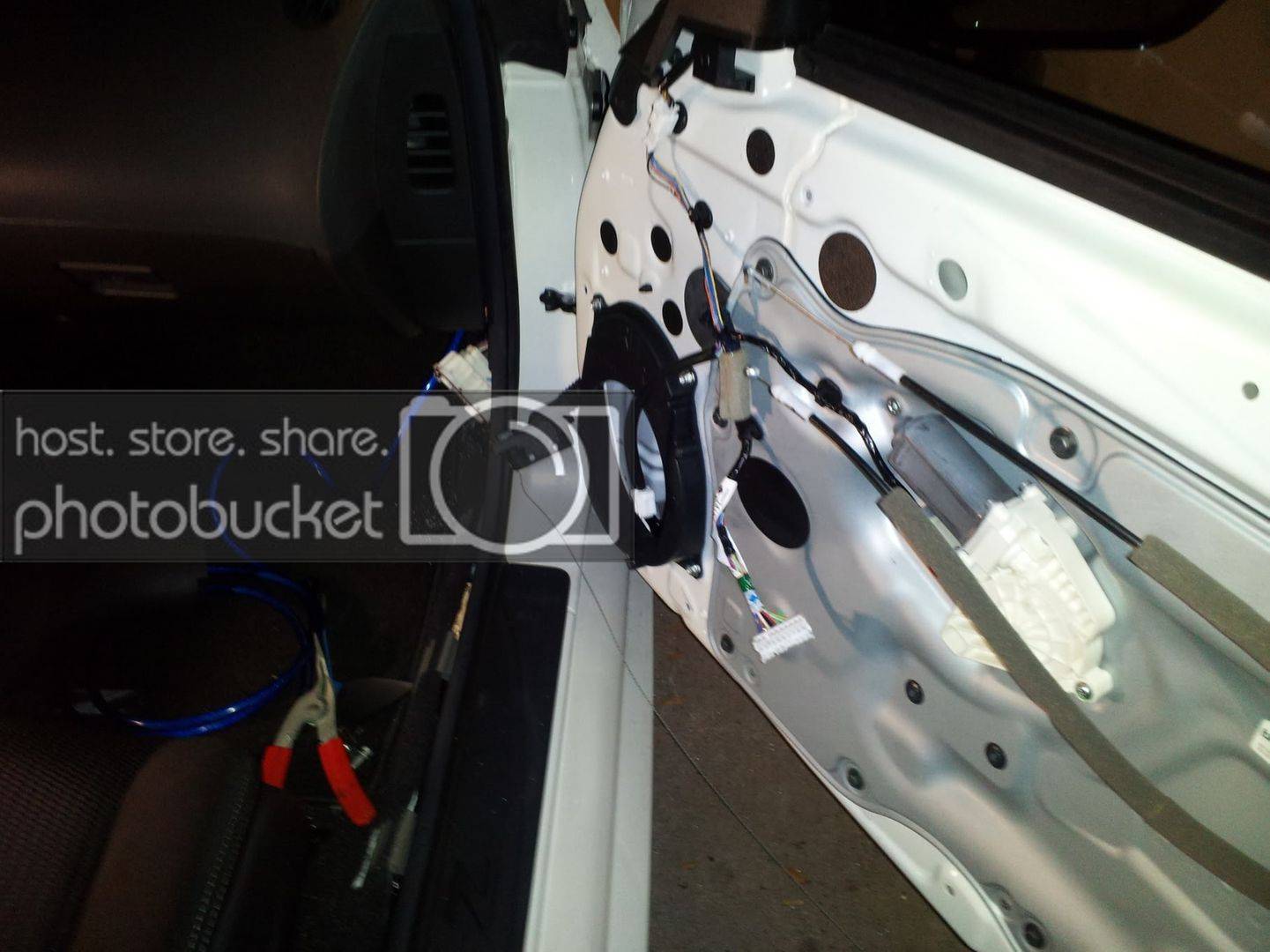

Doors removed and starting to run new wiring.

Learning to work in tight spots!

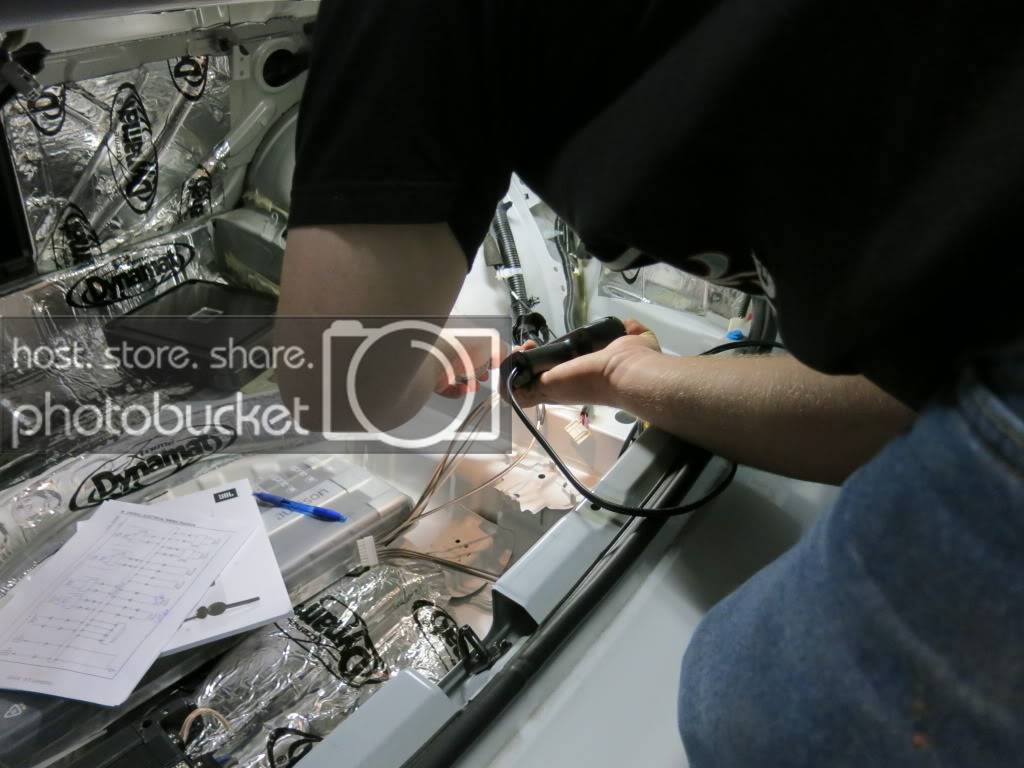

Soldering is KEY!!

Rest!

SNOW!

Tweeters installed

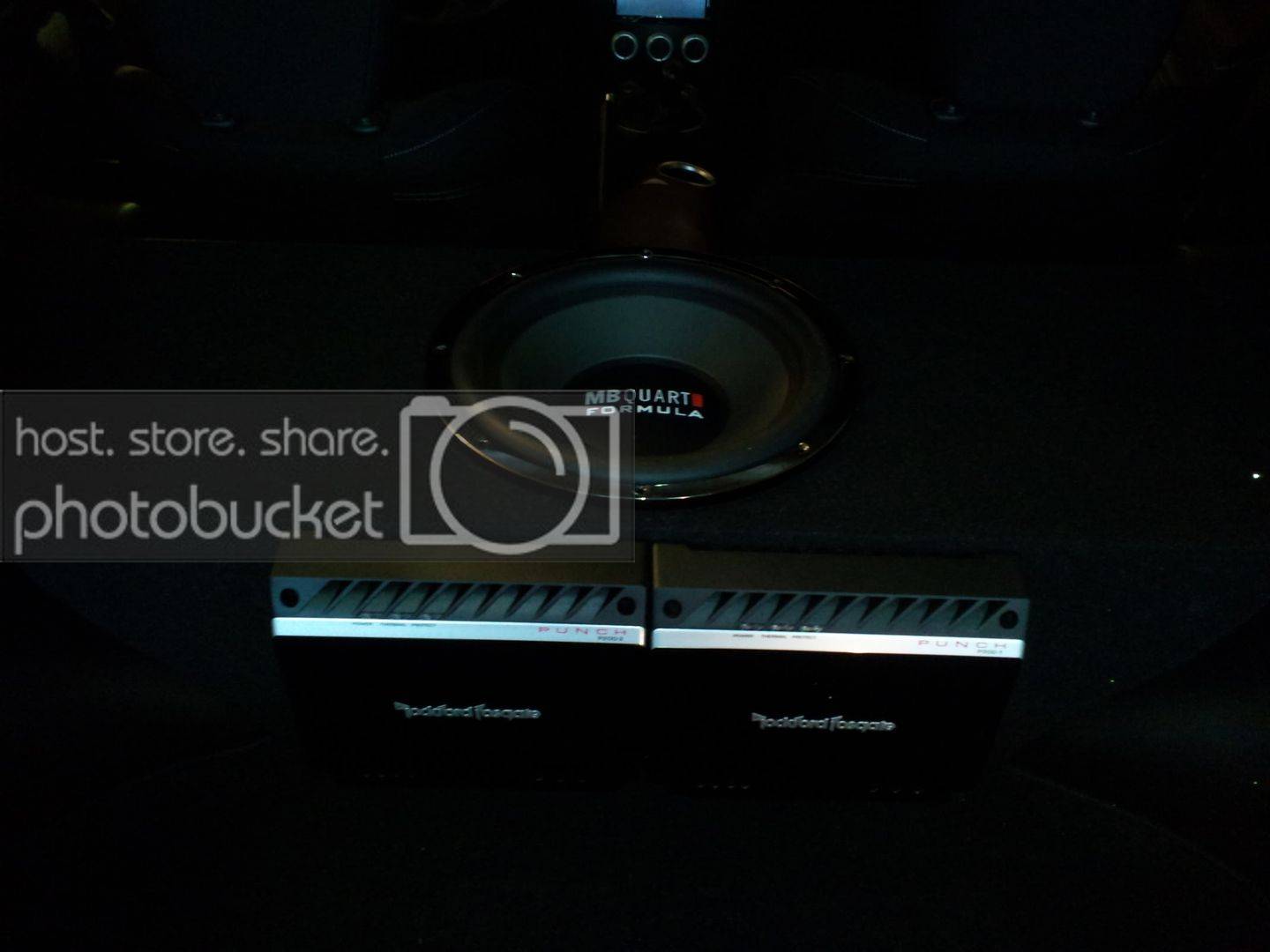

Everything mounted and tested. Forgot pics of the head unit and speakers



[bigaudiofanatic 10+ year member]

I am currently working on a 3 day ISF full audio build.

Products:

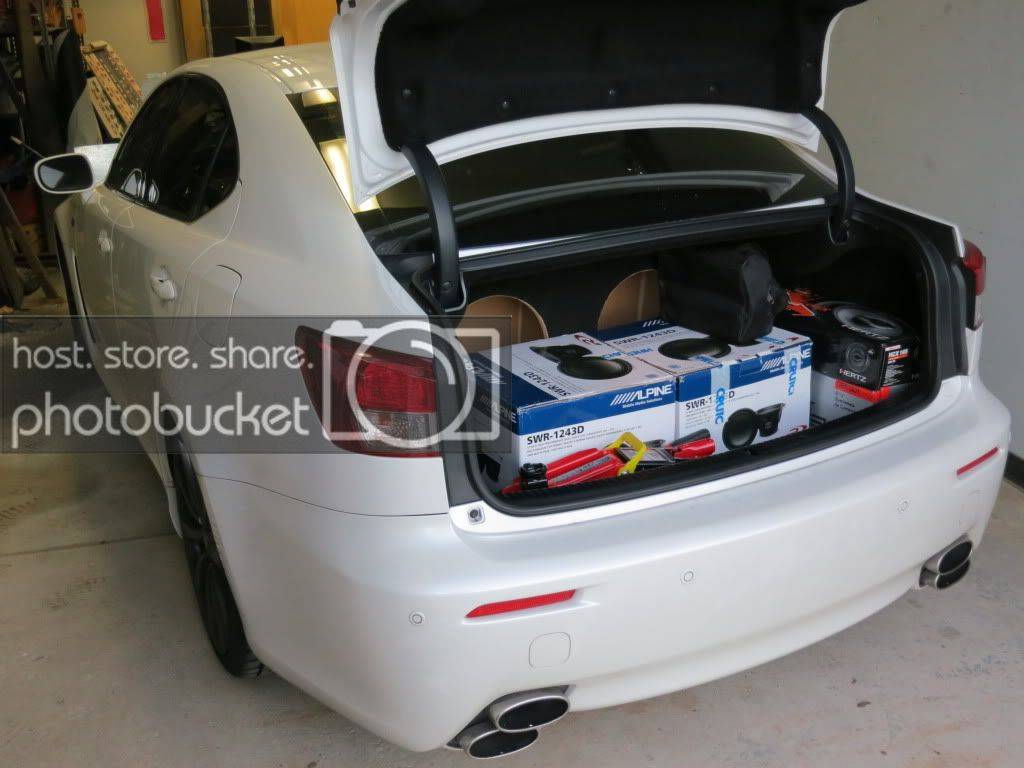

JBL MS8

Hertz 6.5 Coaxial rears

Pioneer Stage 4 components running active

2 Audison LRx amps and a alpine PDX M12

2 Alpine Type R's

2nd Battery

I will break down the wiring diagram as best I can for future installers.

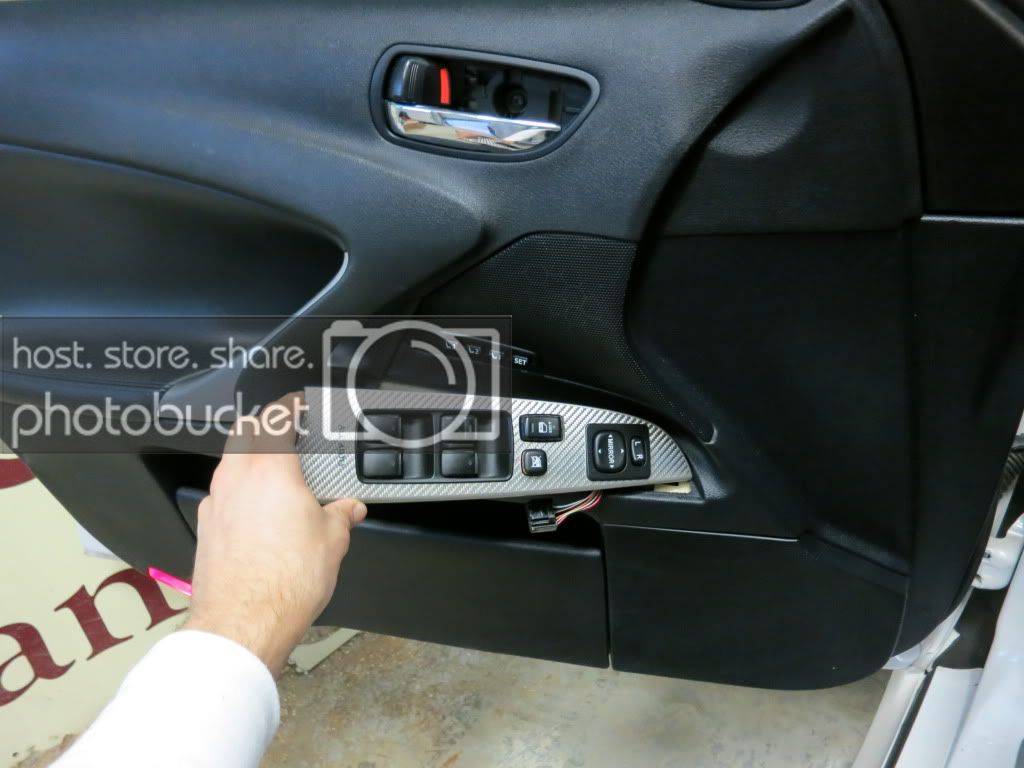

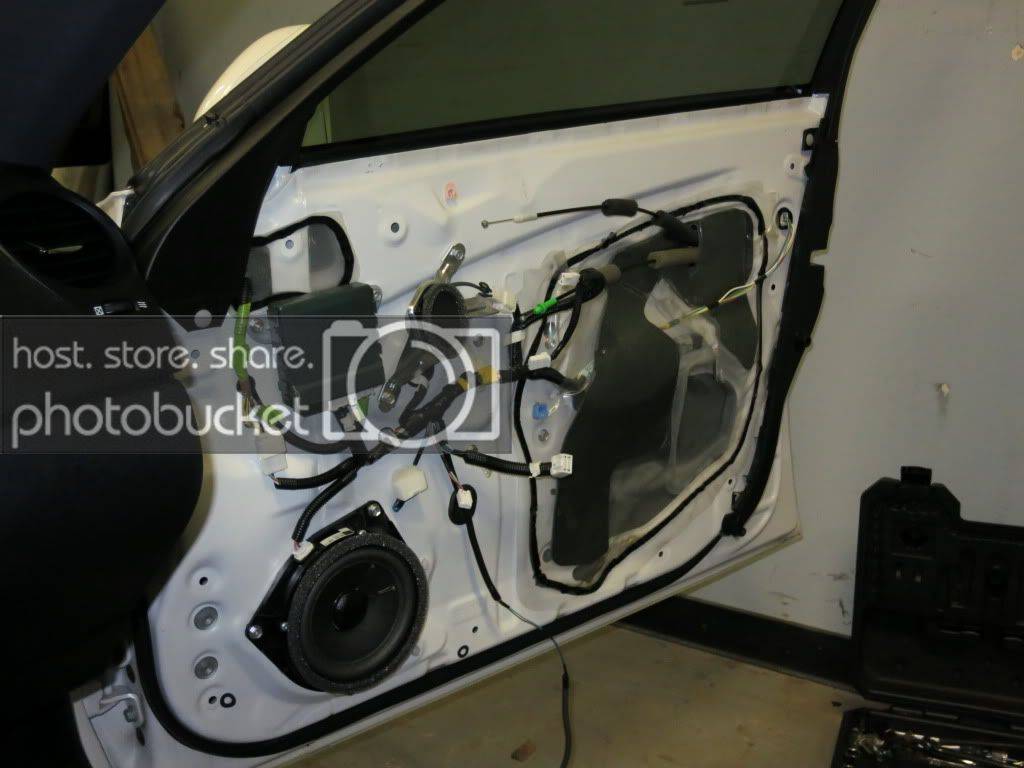

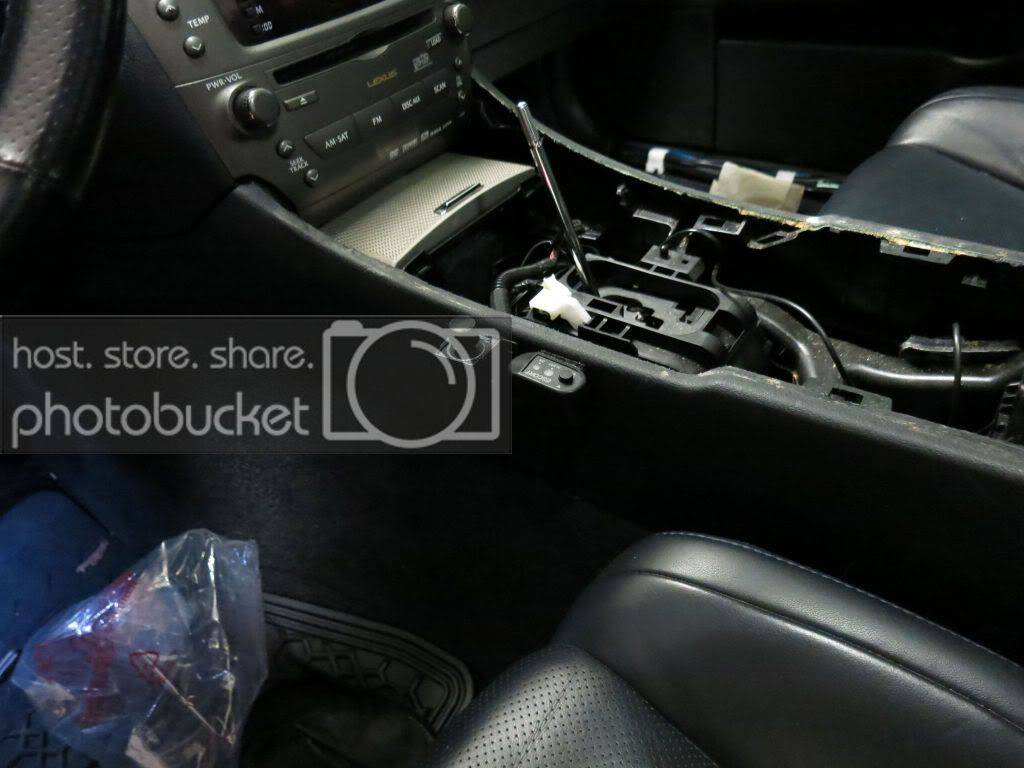

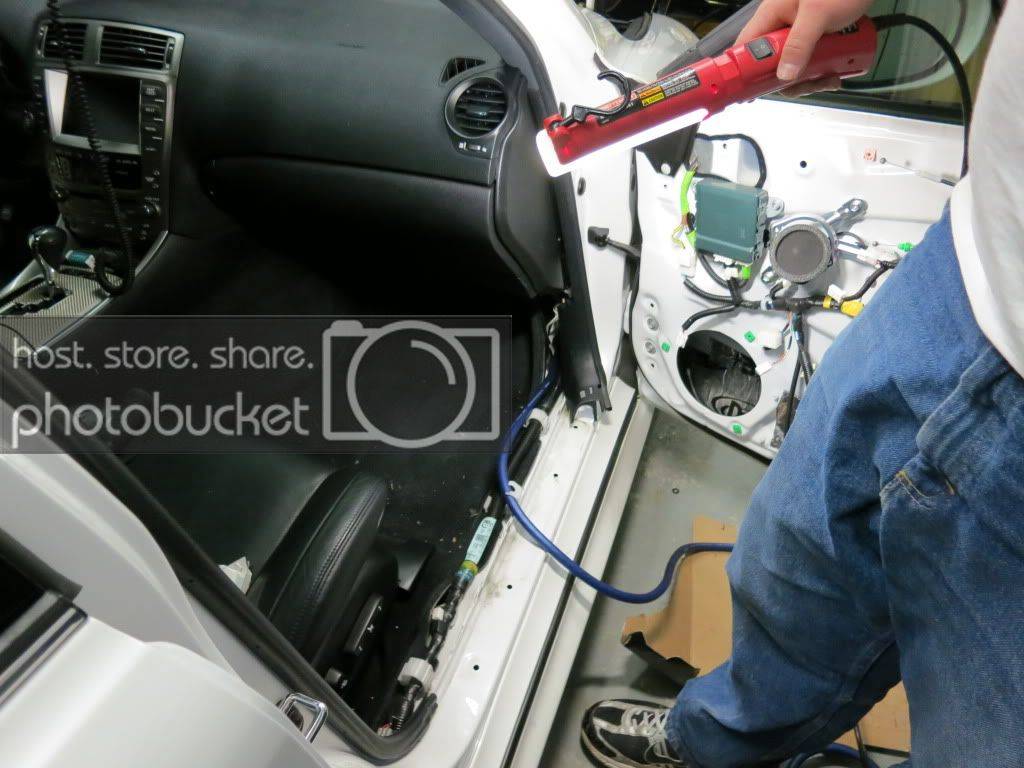

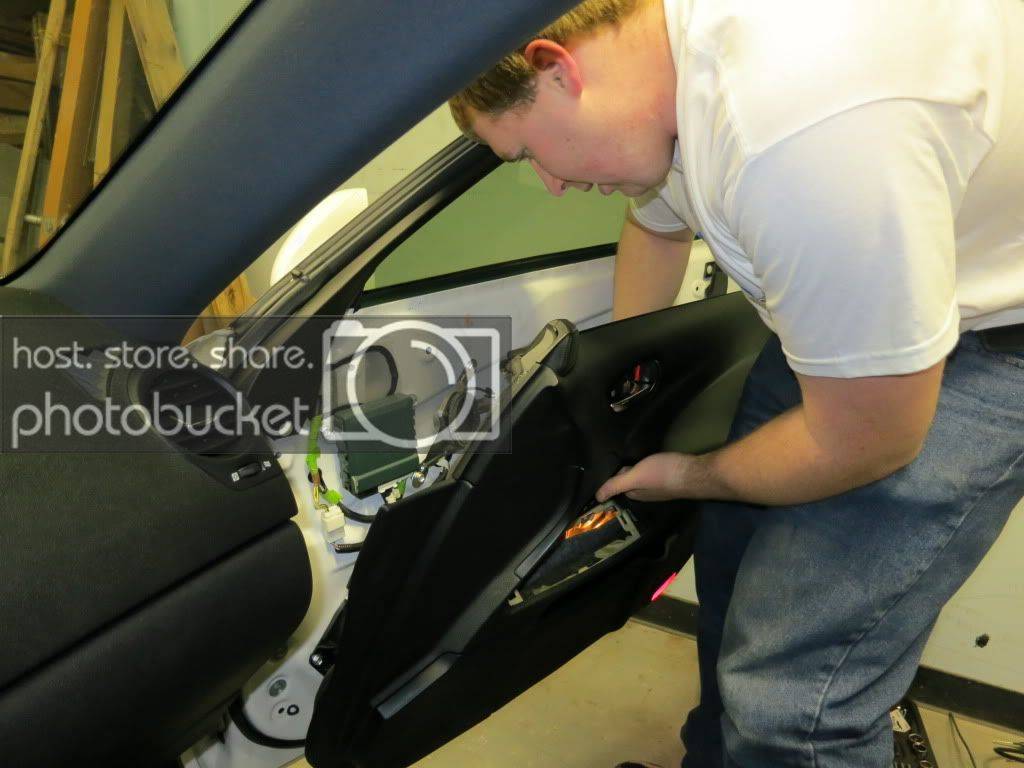

Removing door panels

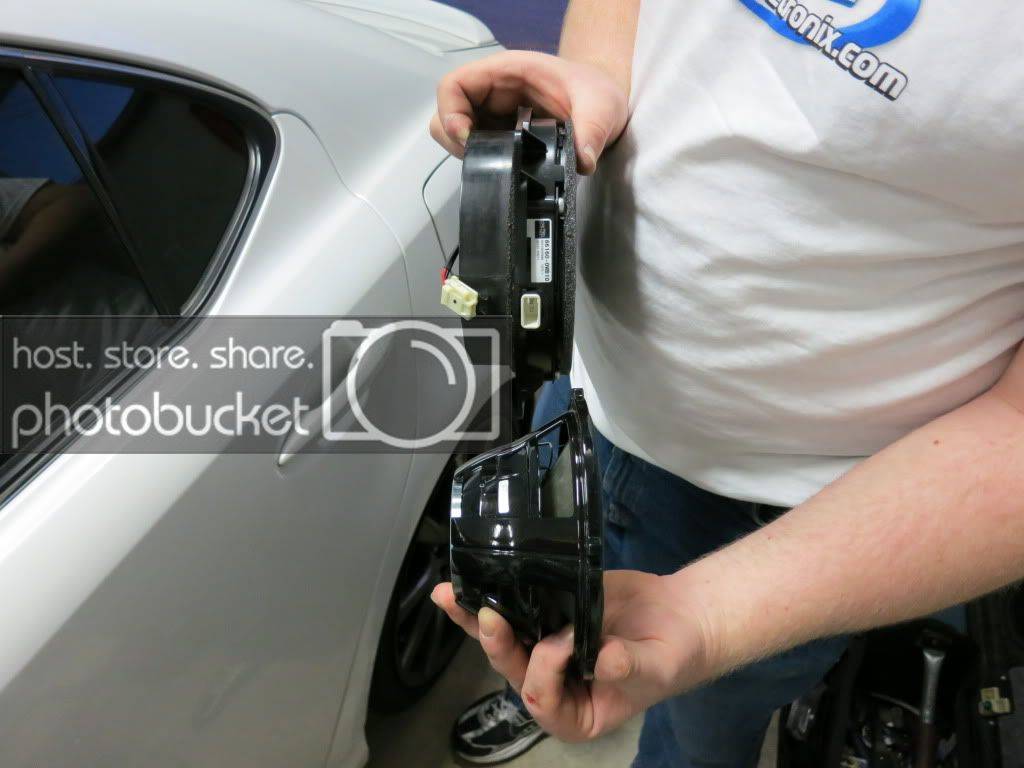

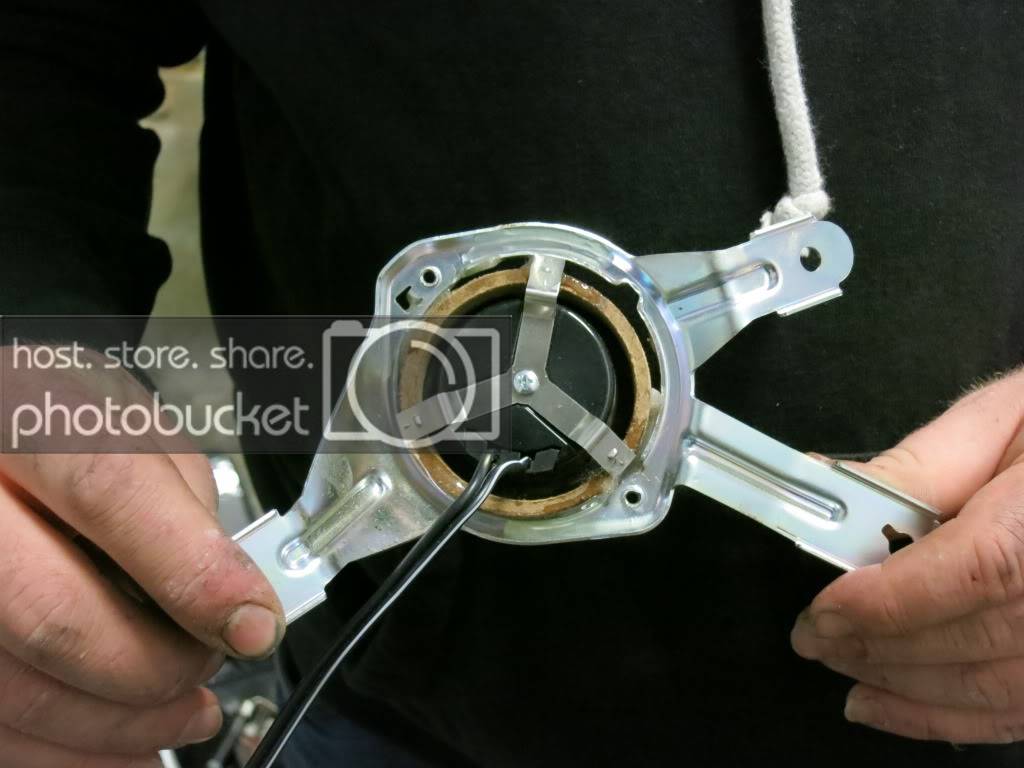

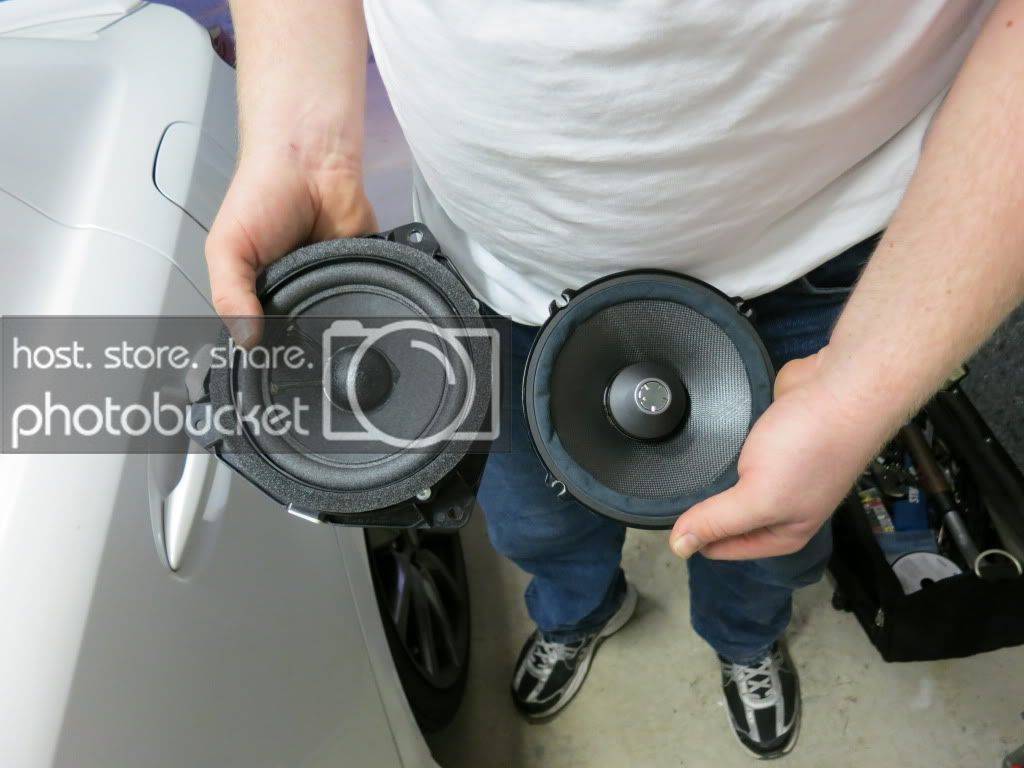

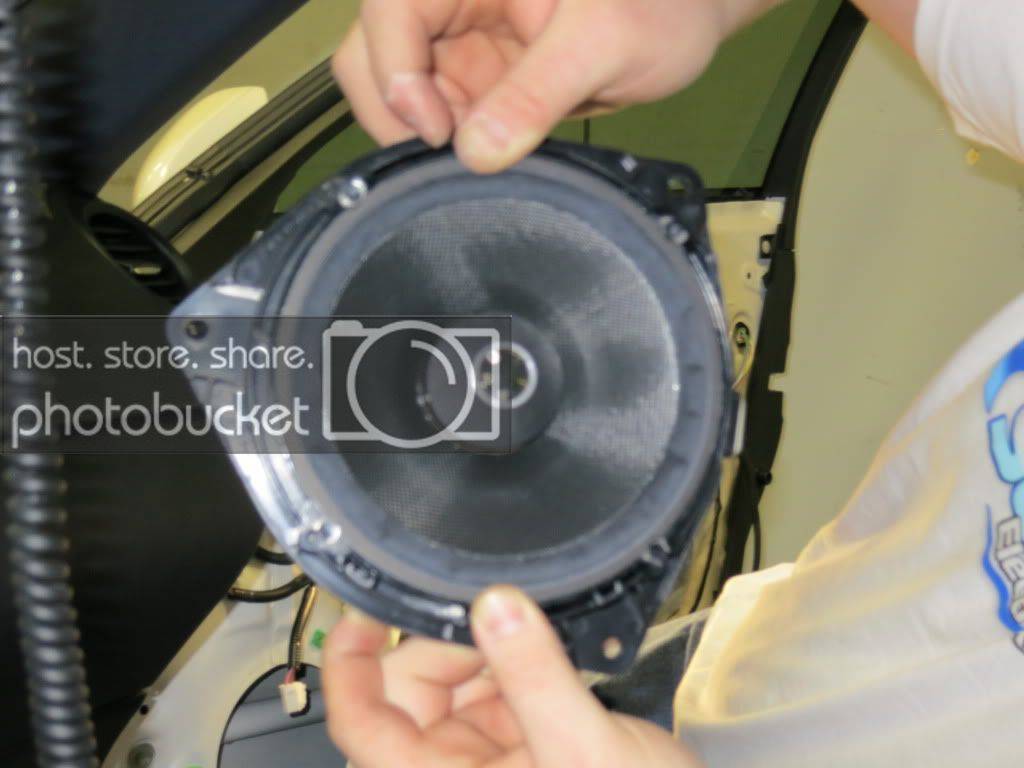

Stock speakers vs aftermarket



[bigaudiofanatic 10+ year member]

Good amount of depth

Lines up with factory holes

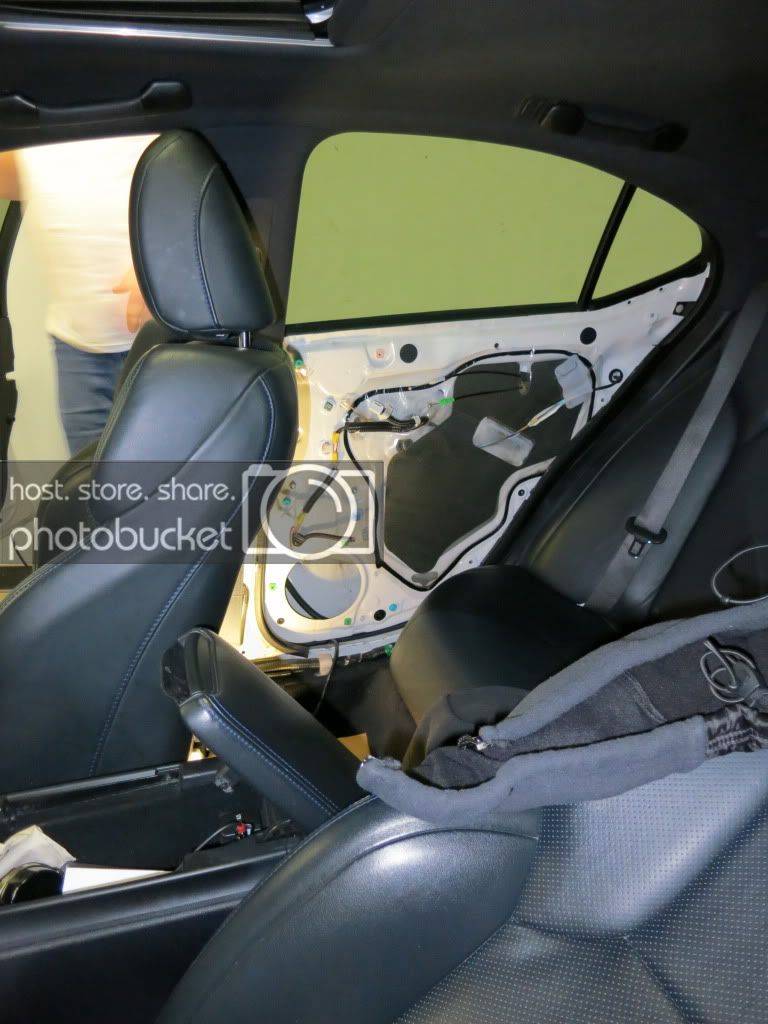

Rear doors

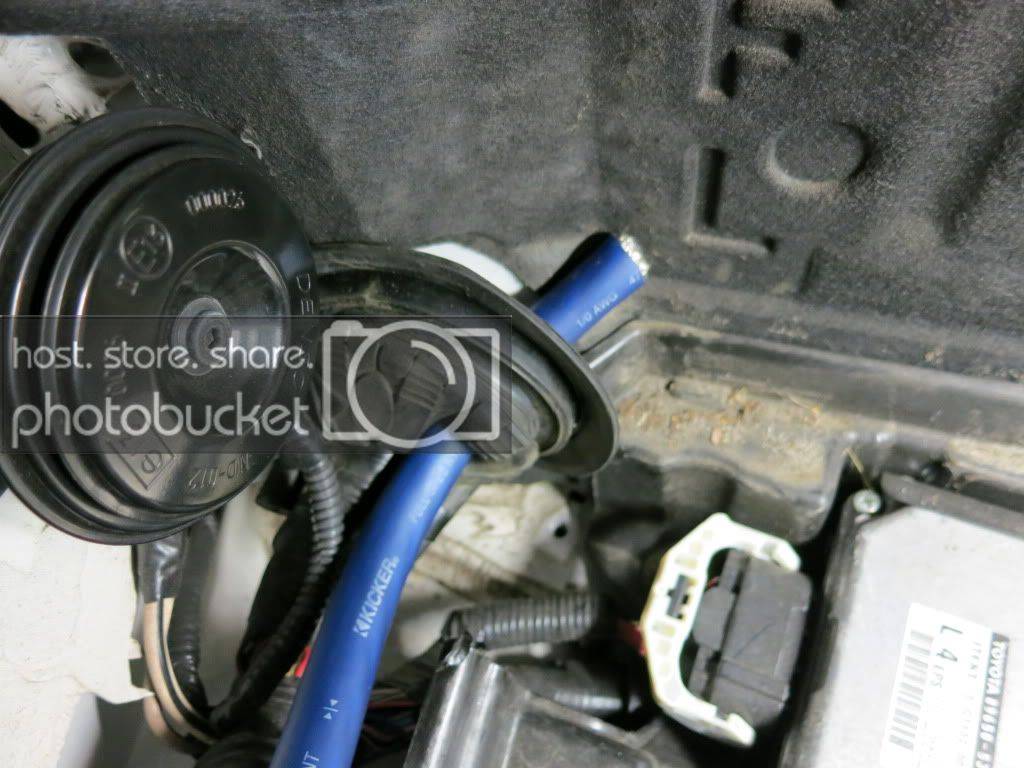

Location behind the battery for 0 gauge

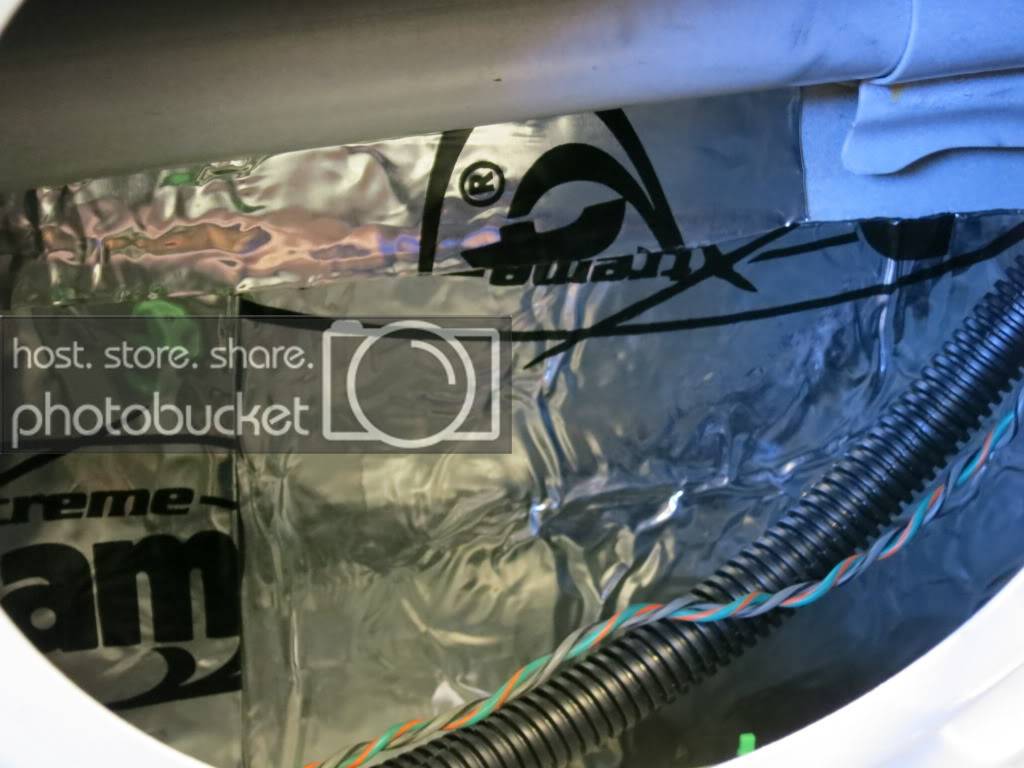

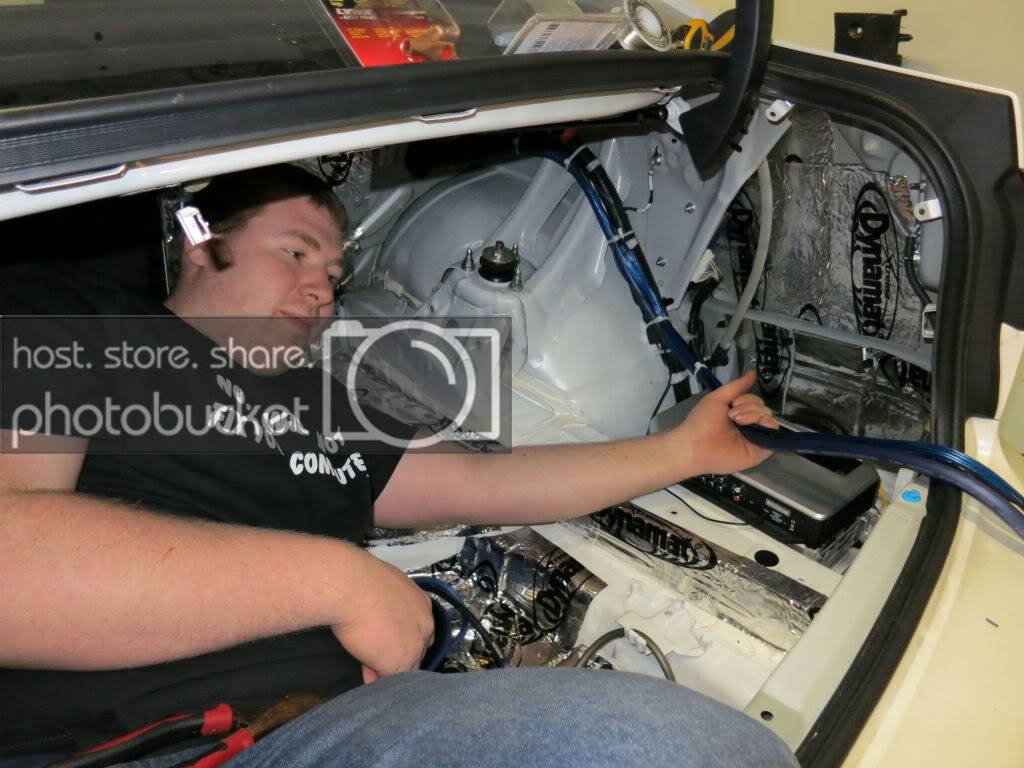

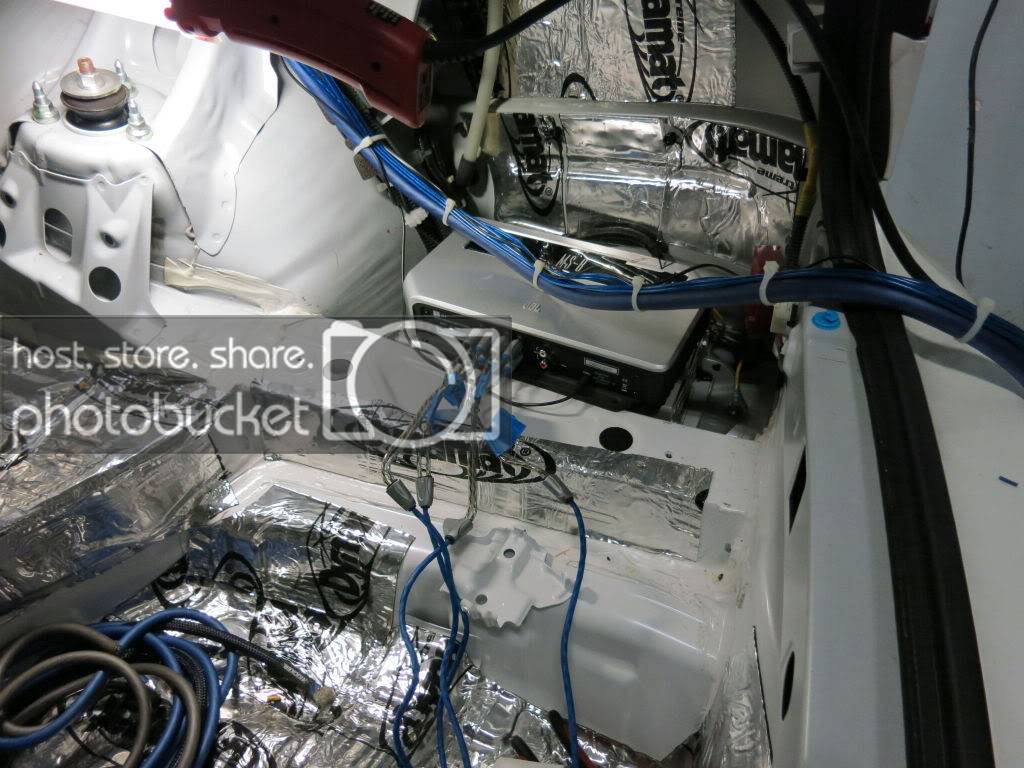

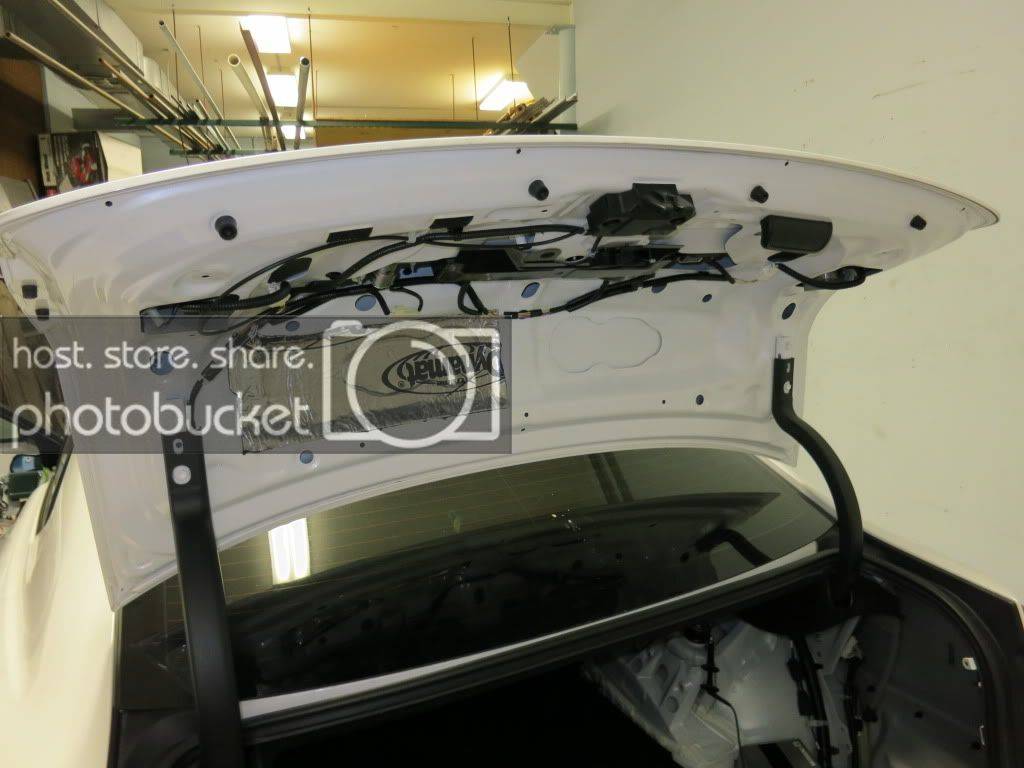

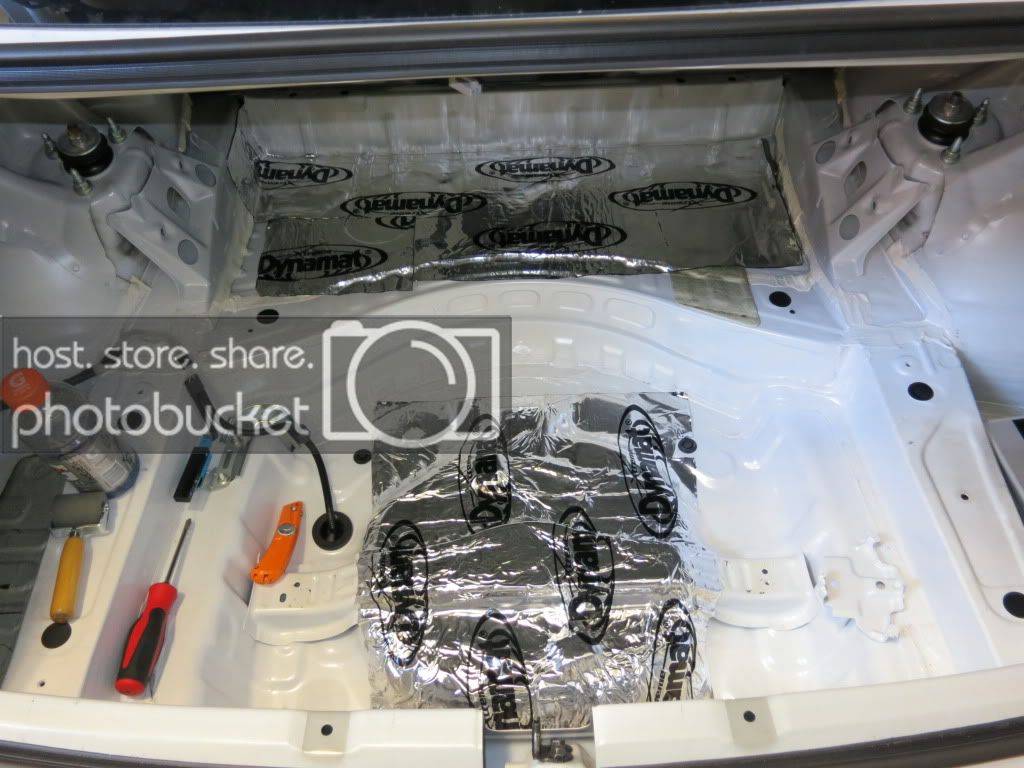

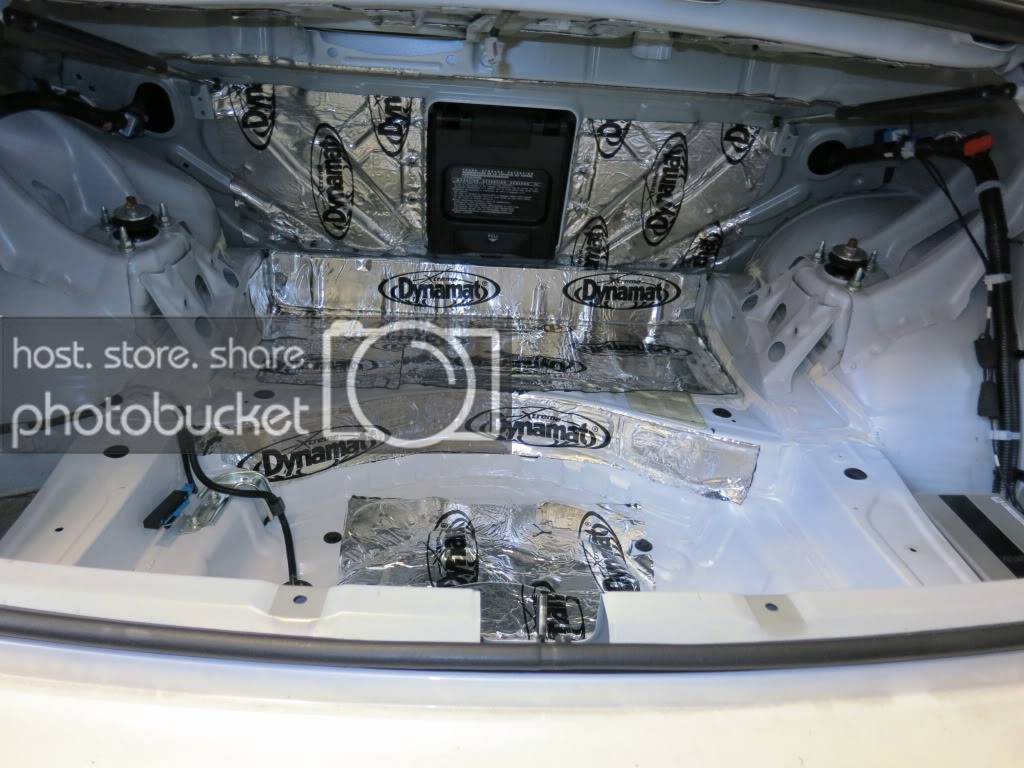

Dyanamt trunk

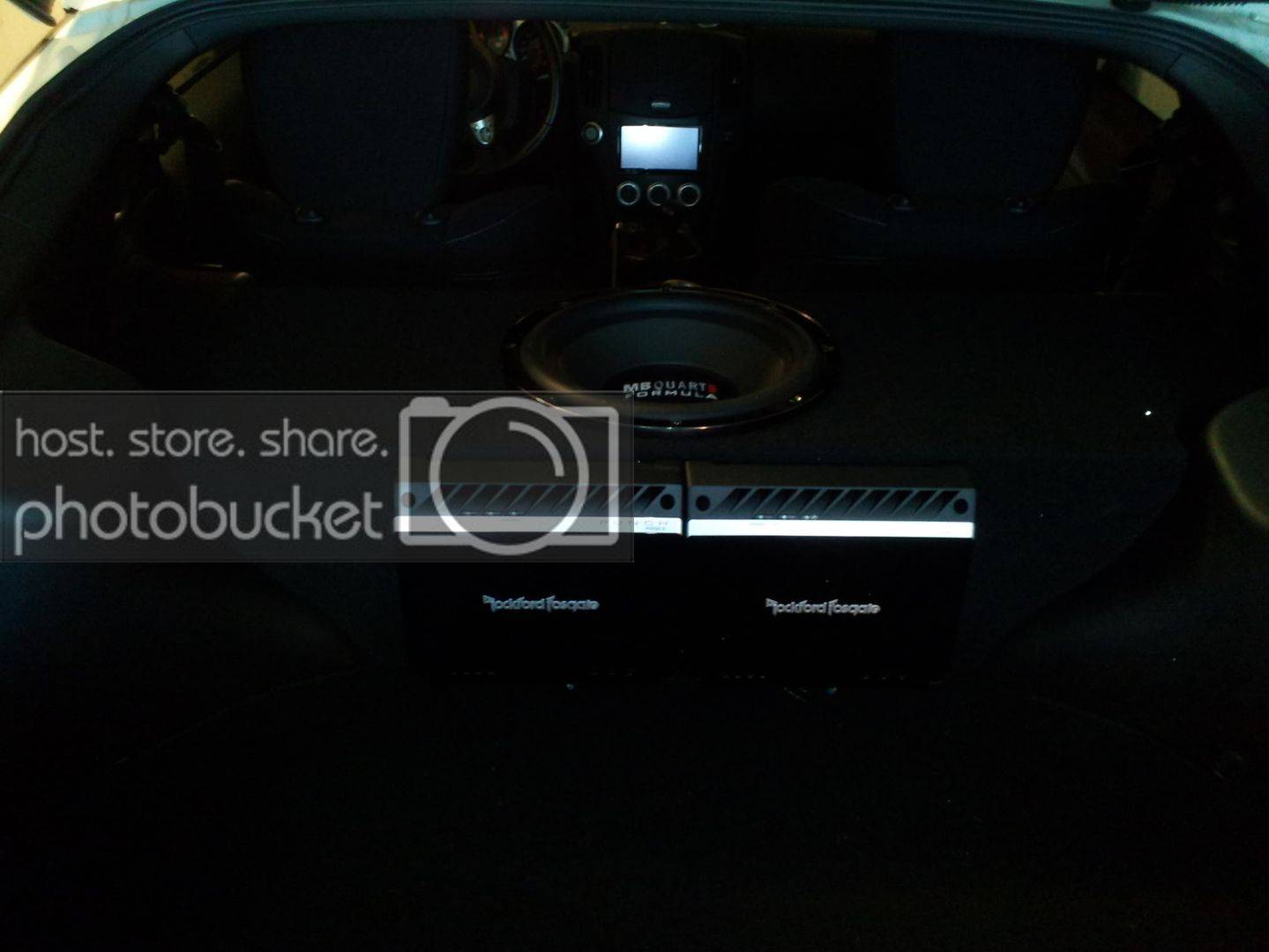

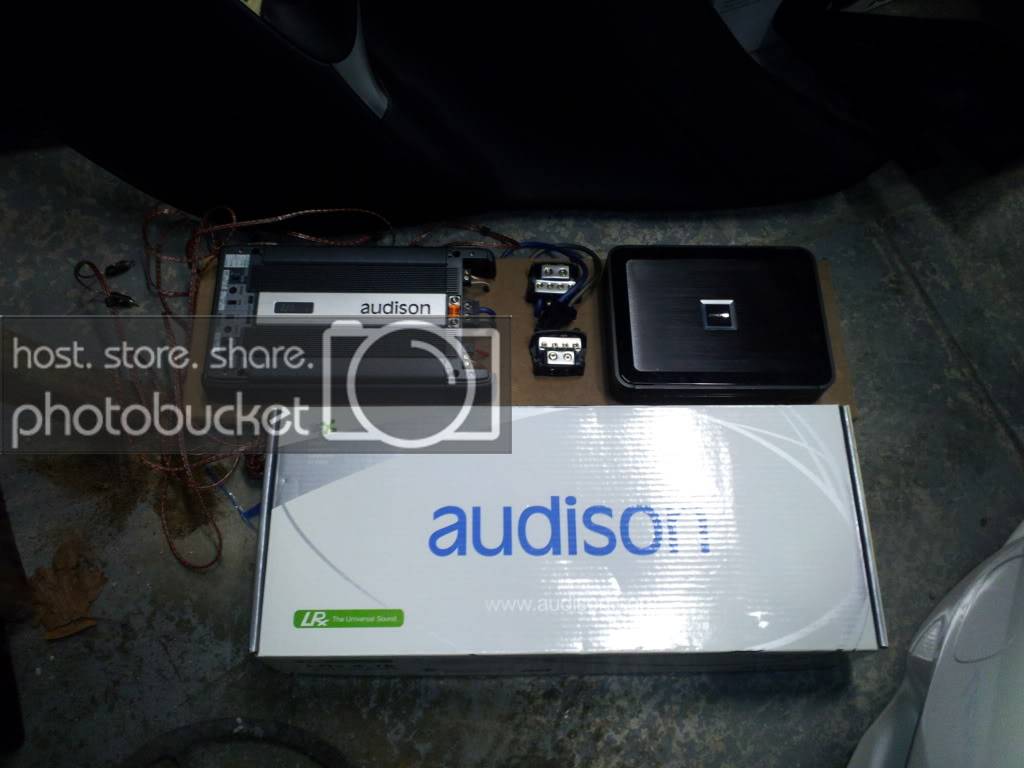

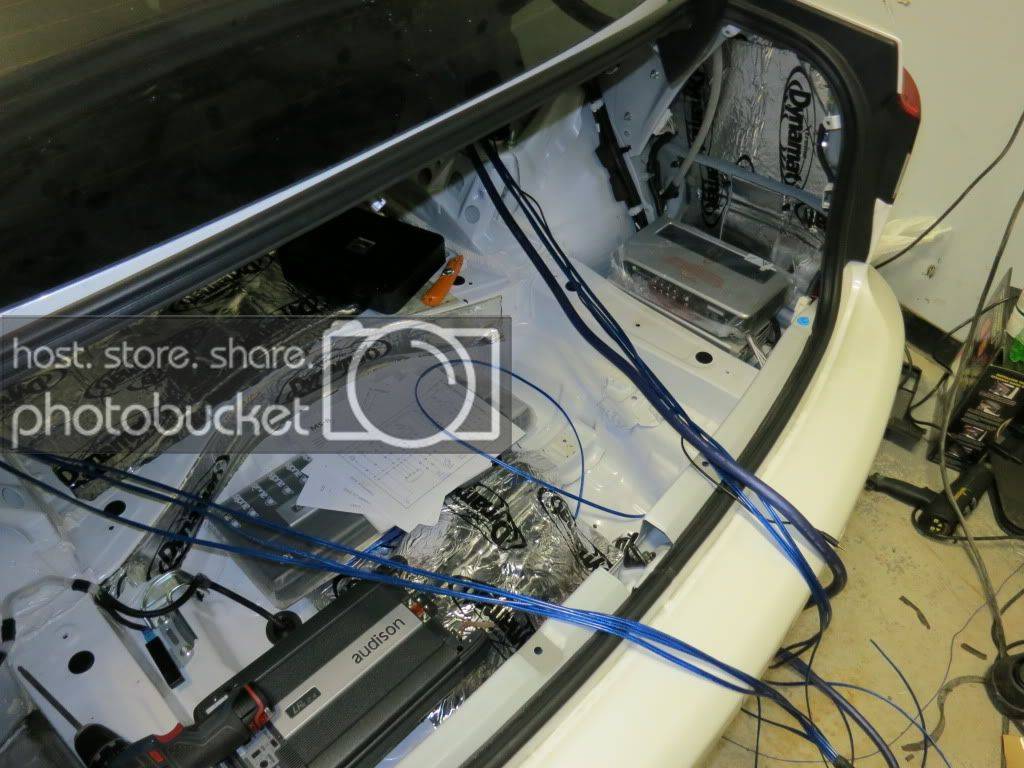

Amps



[bigaudiofanatic 10+ year member]

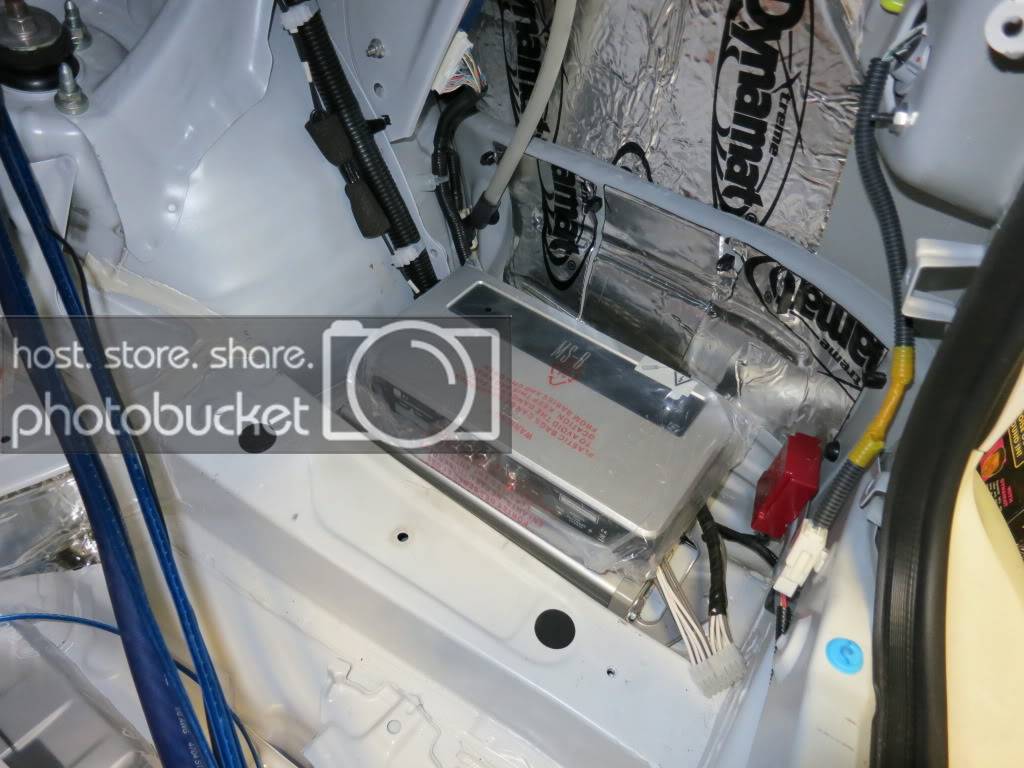

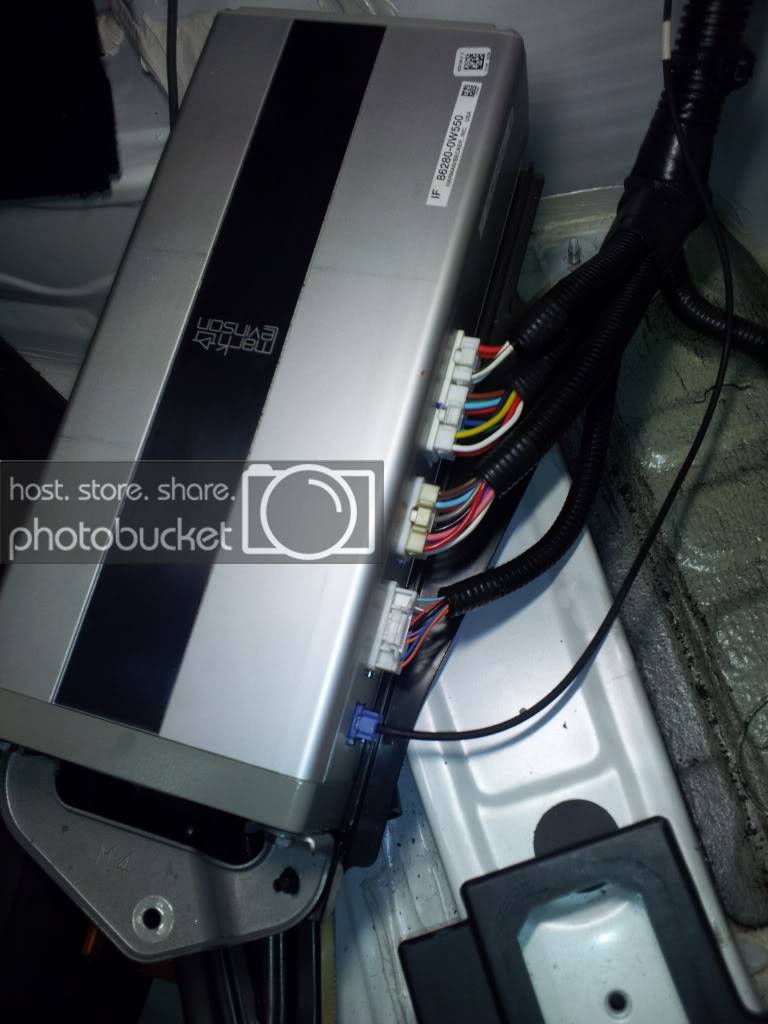

Stock amp

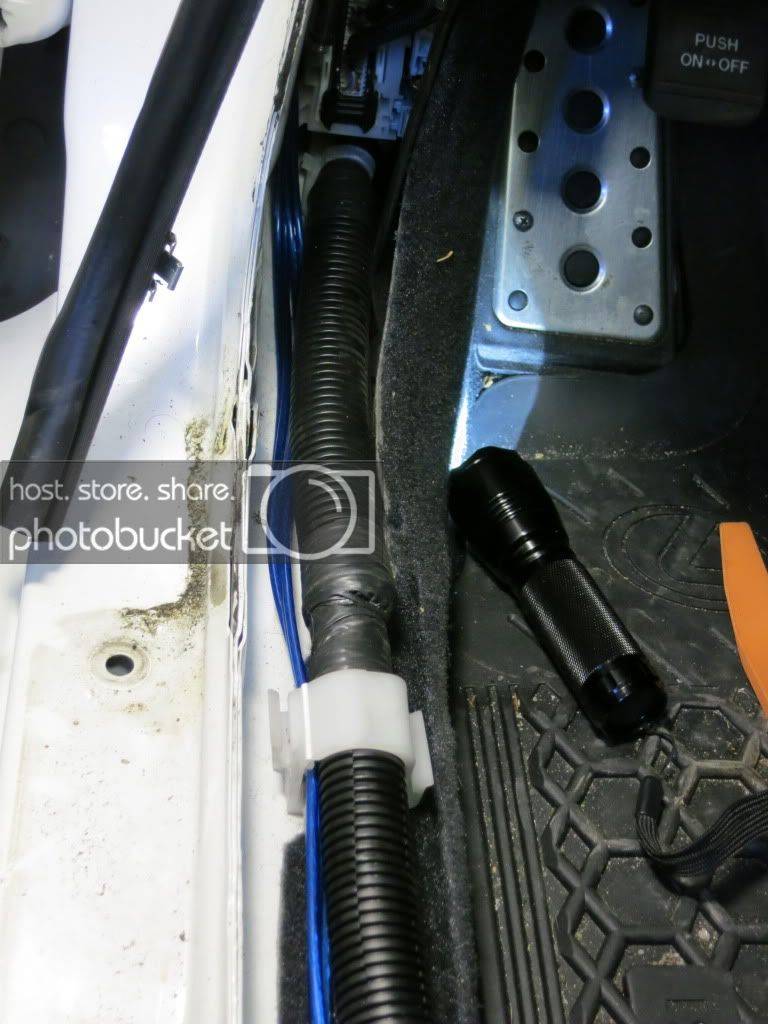

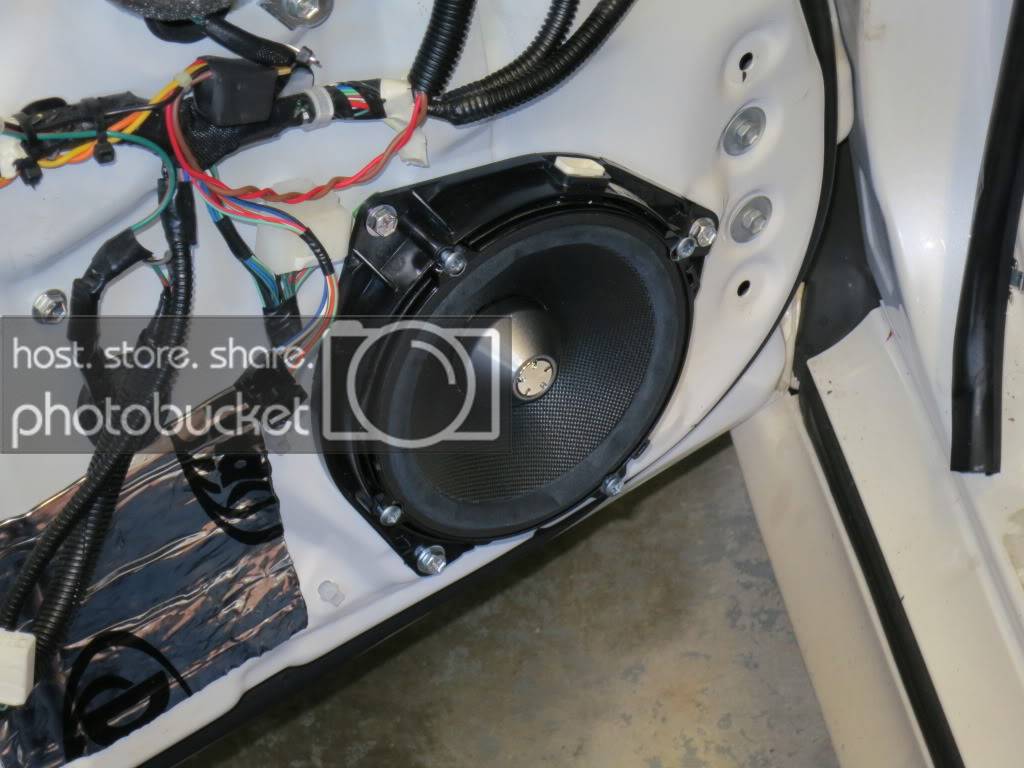

Speaker wires ran

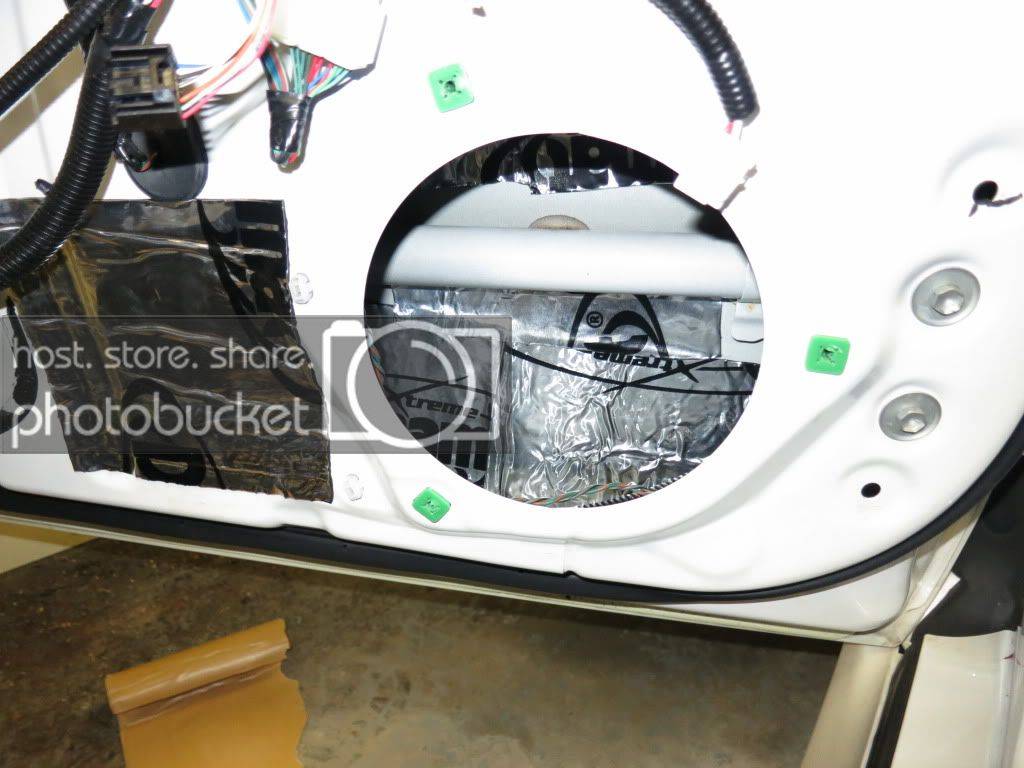

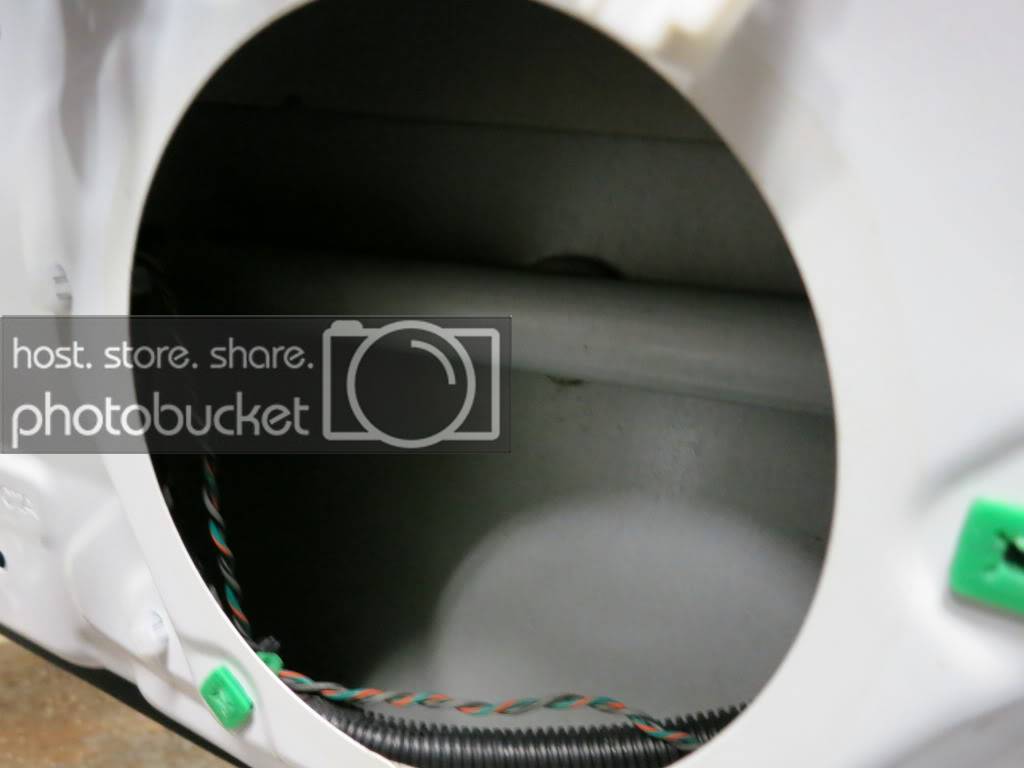

Inside door

"I did not do the dynamat owner did"

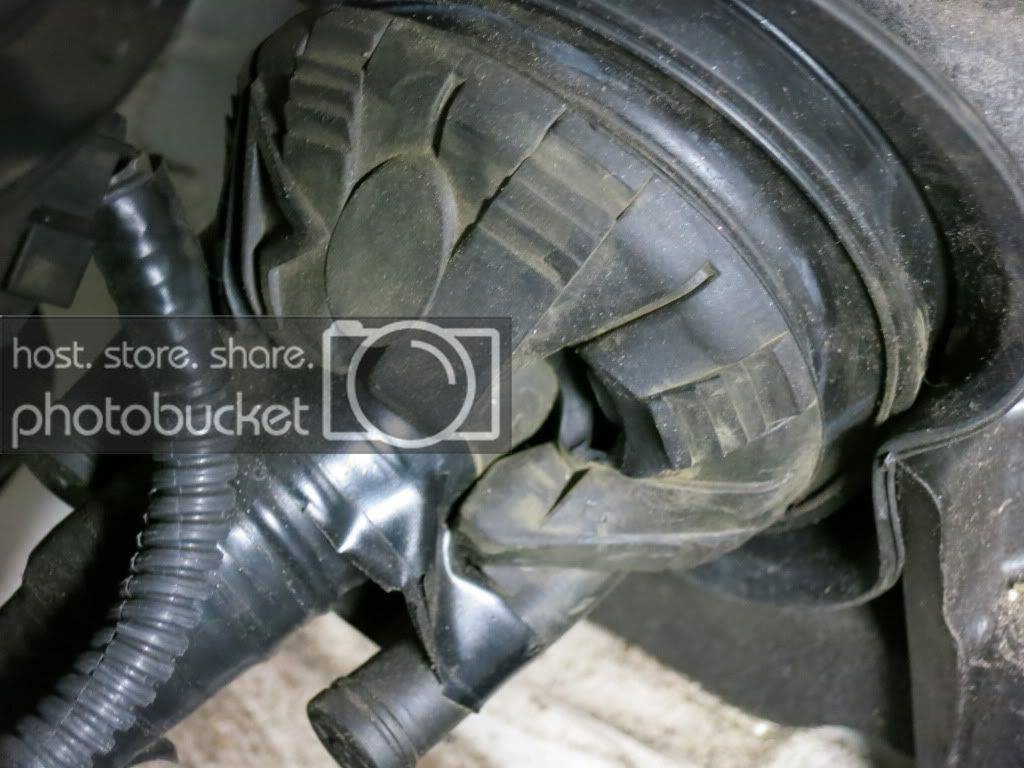

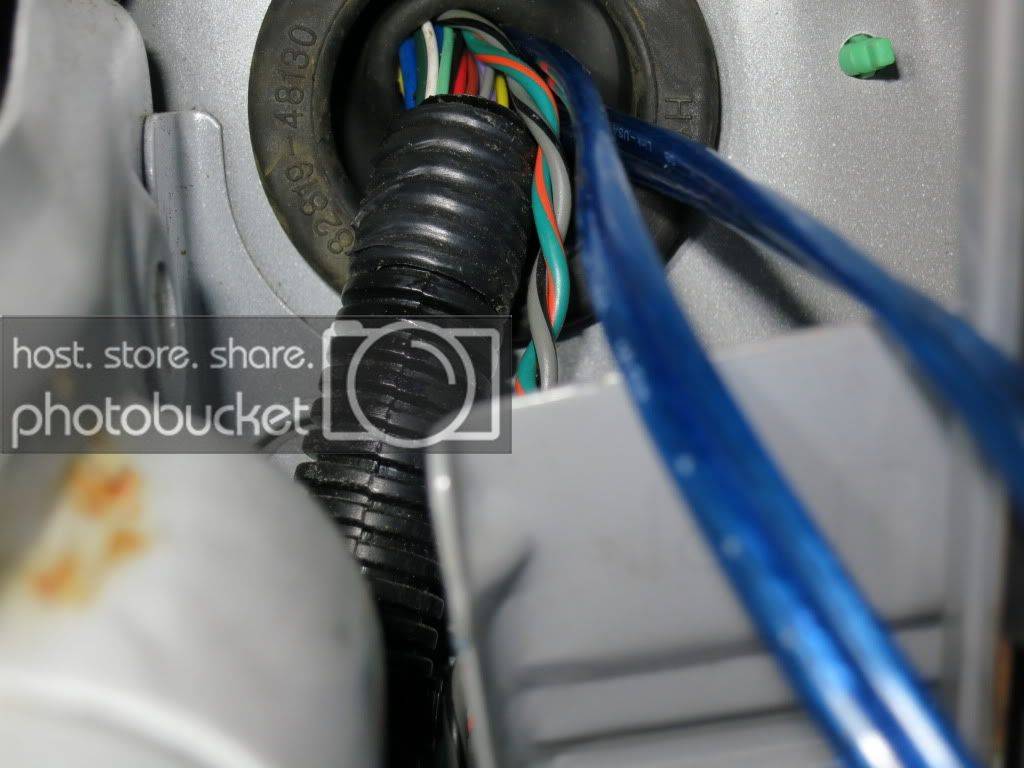

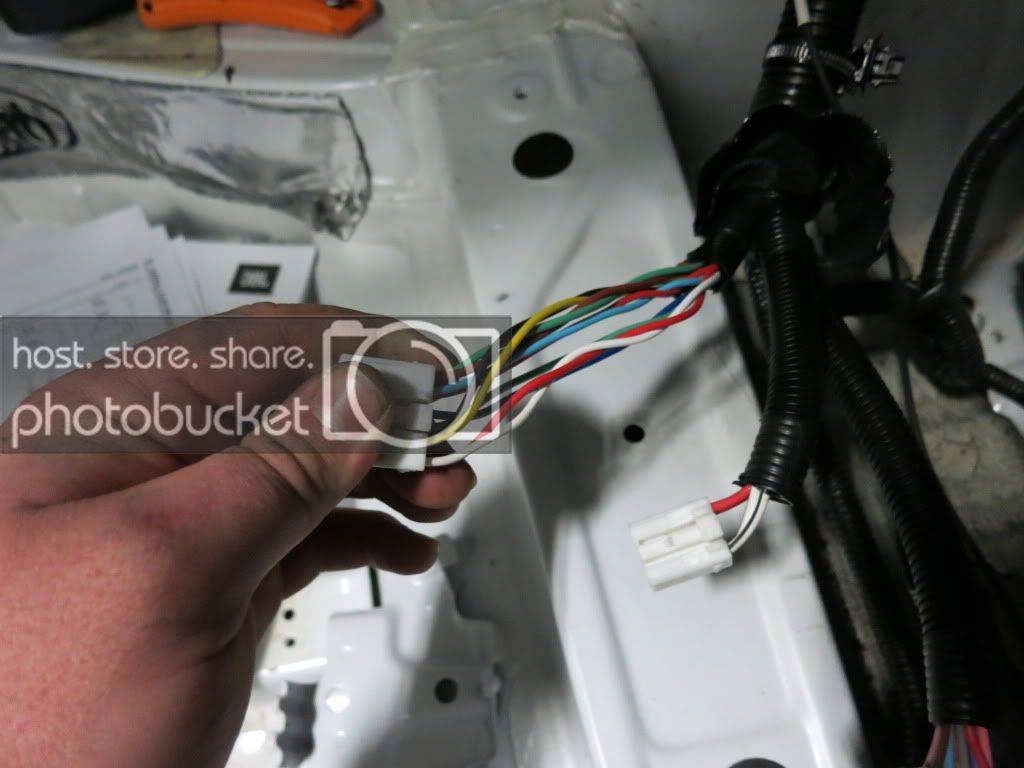

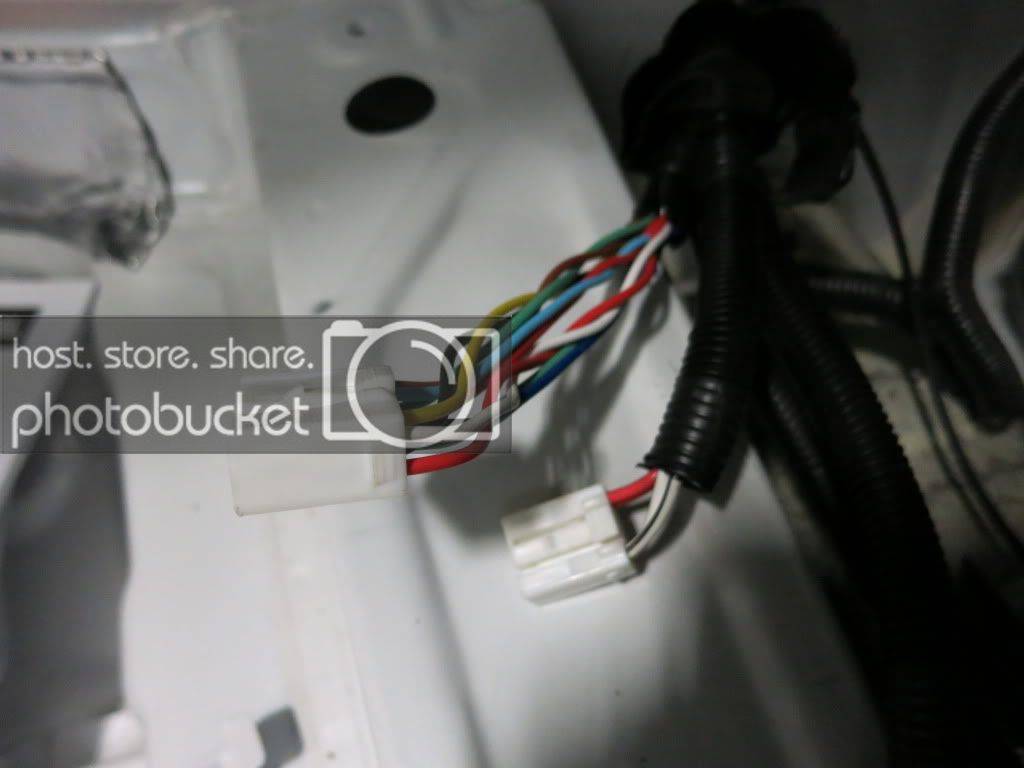

Factory wiring harnesses



[bigaudiofanatic 10+ year member]

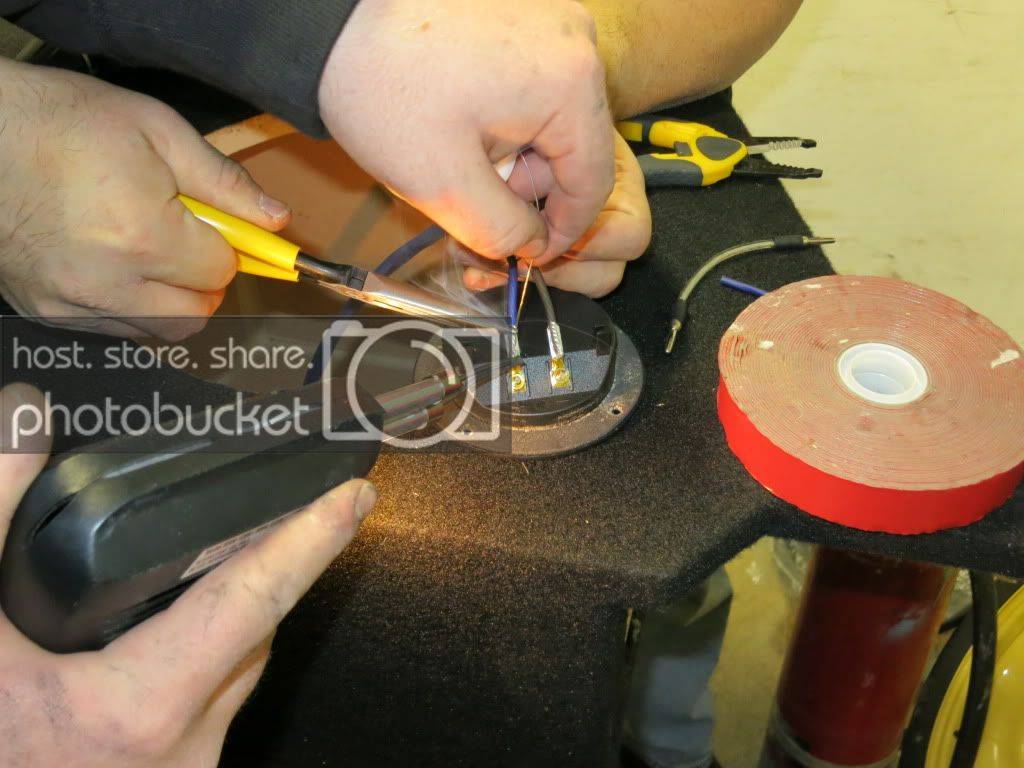

Solder and heat shrink connections

Rubber tape to wrap them all nice

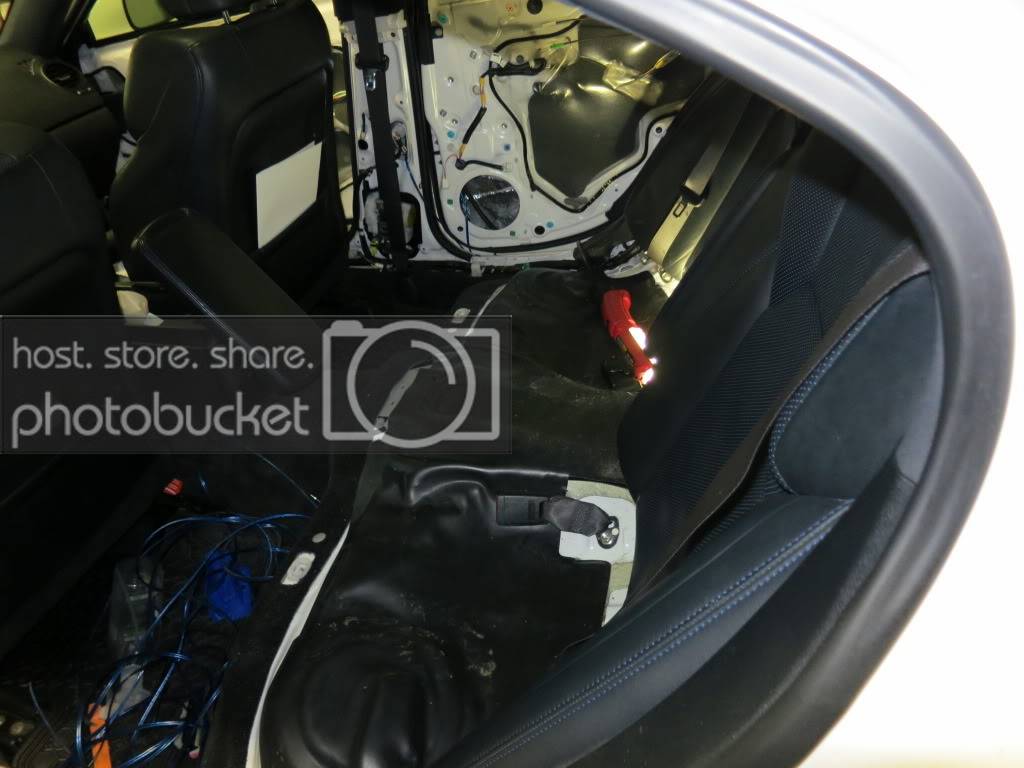

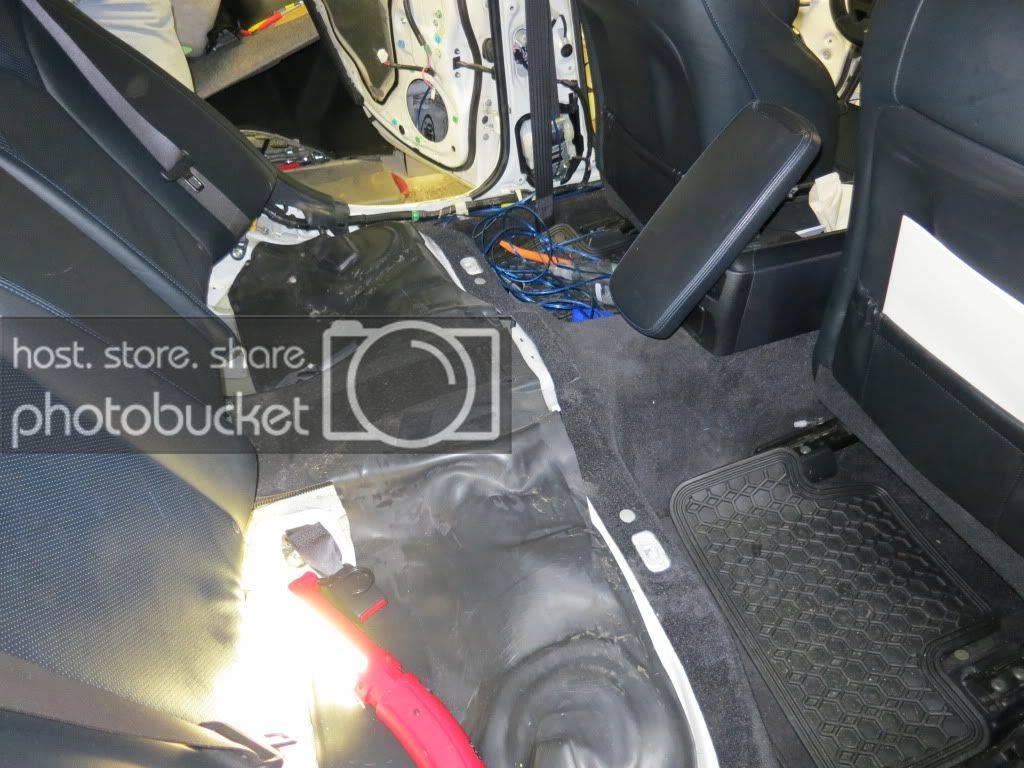

Rear seats out

Battery ground upgrade

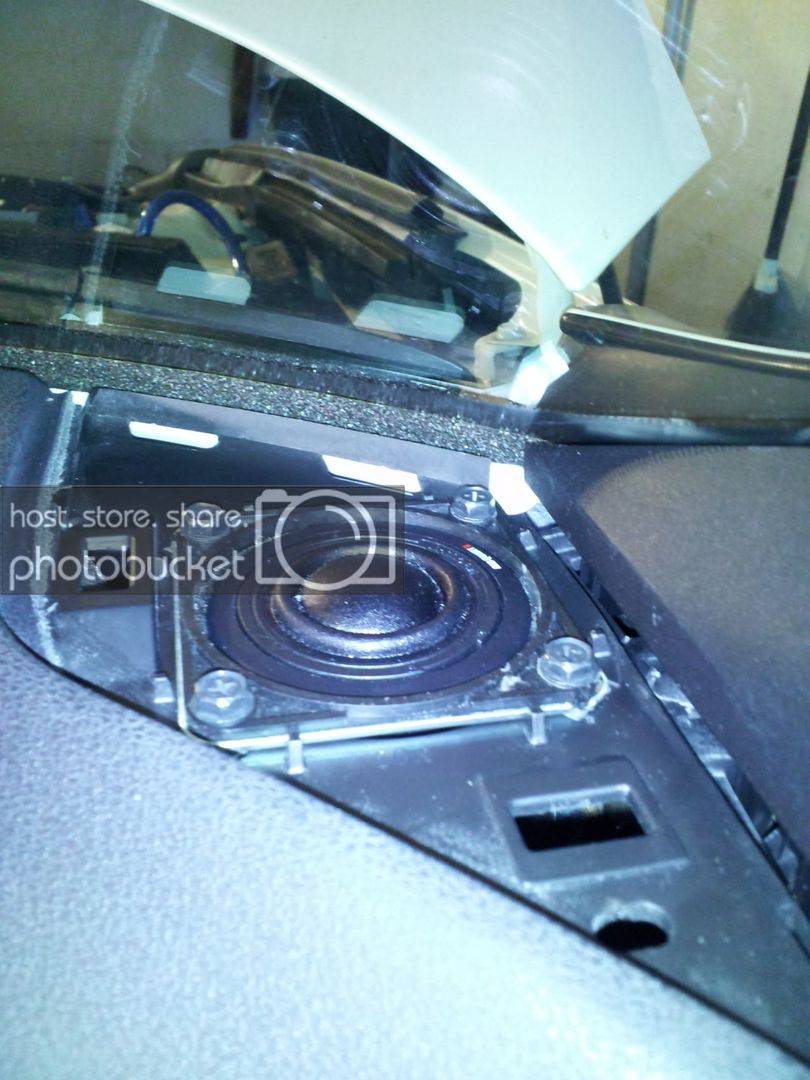

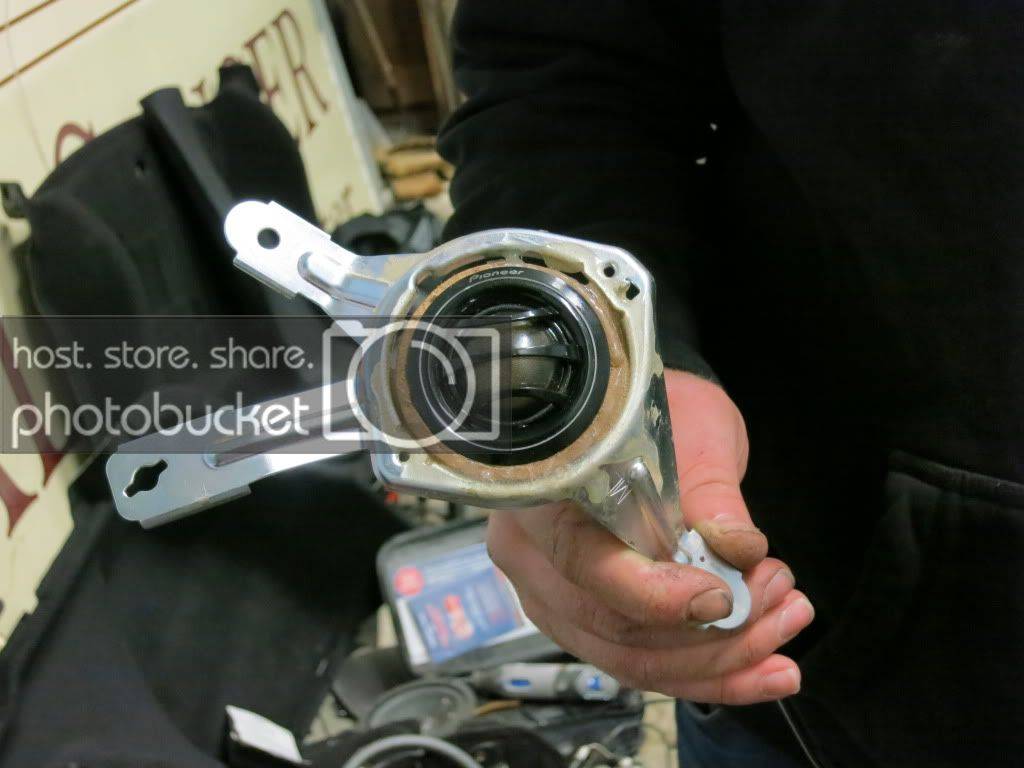

Factory mid location now home to tweeter. Not pretty but very strong. Gorilla epoxy

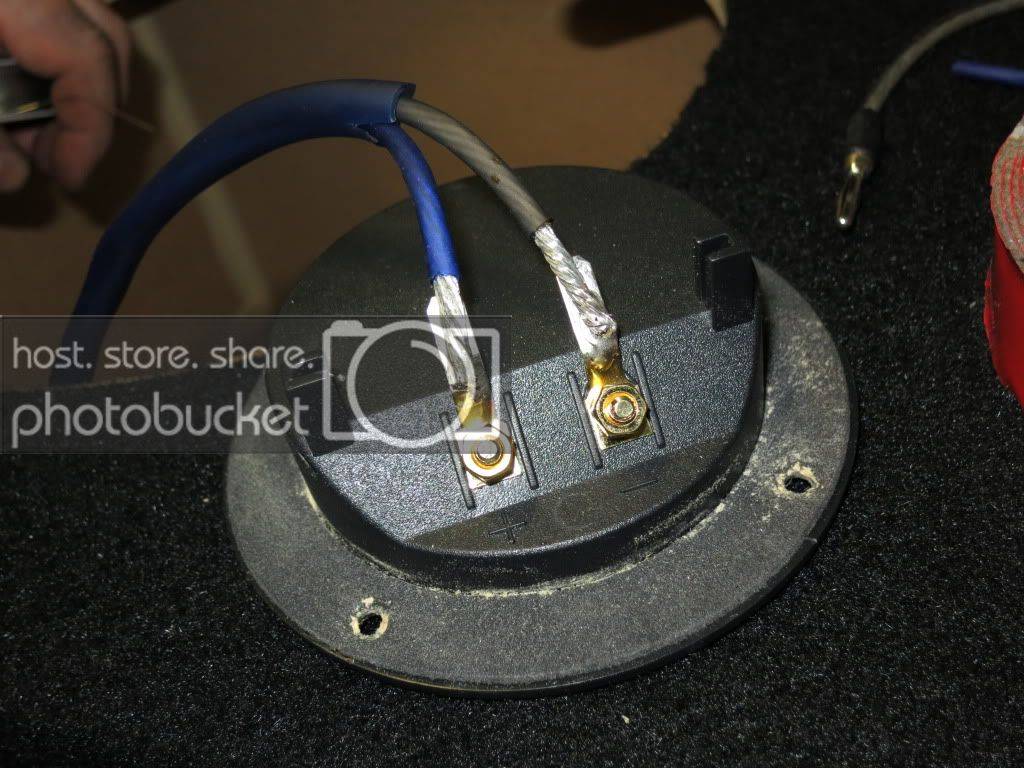

Sub wiring



[bigaudiofanatic 10+ year member]

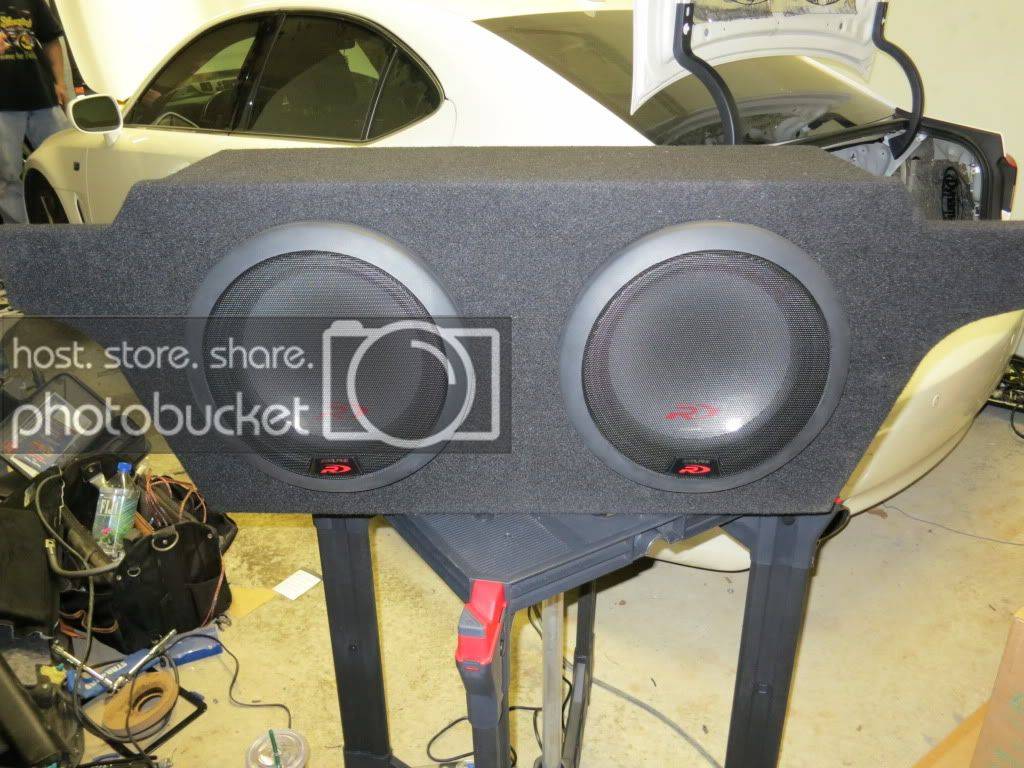

Subs ready

Most cables ran for tomorrow

MS8 home



[bigaudiofanatic 10+ year member]

Ok got the owner to send me the pics, have some more to come so please be patient!!!

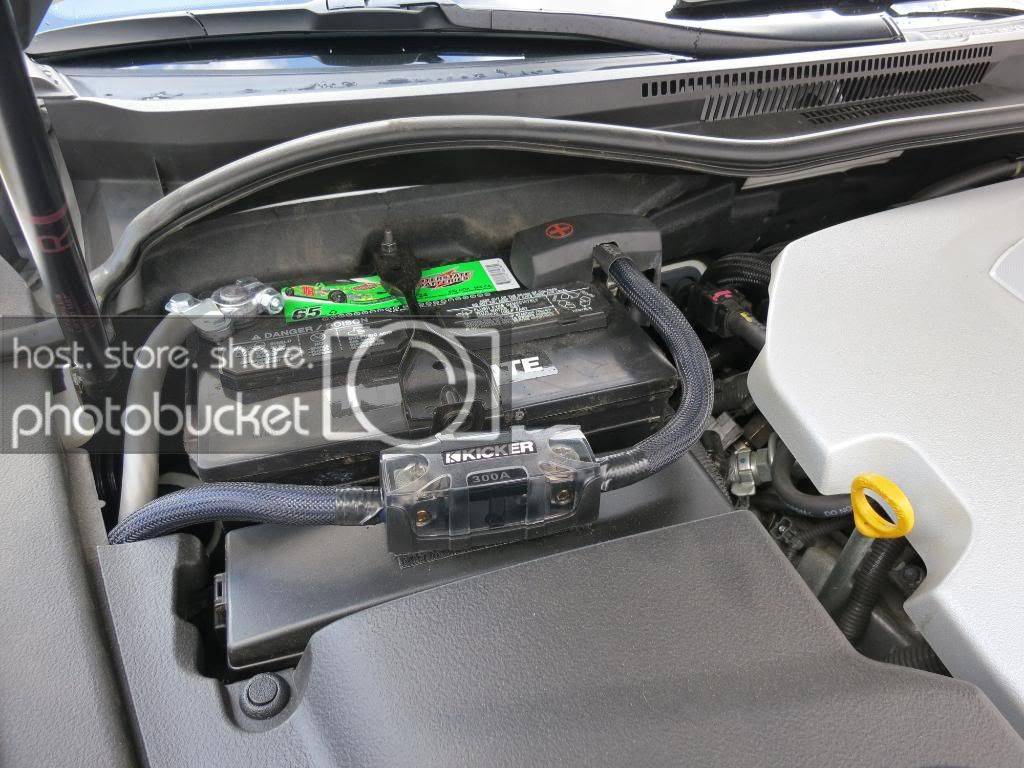

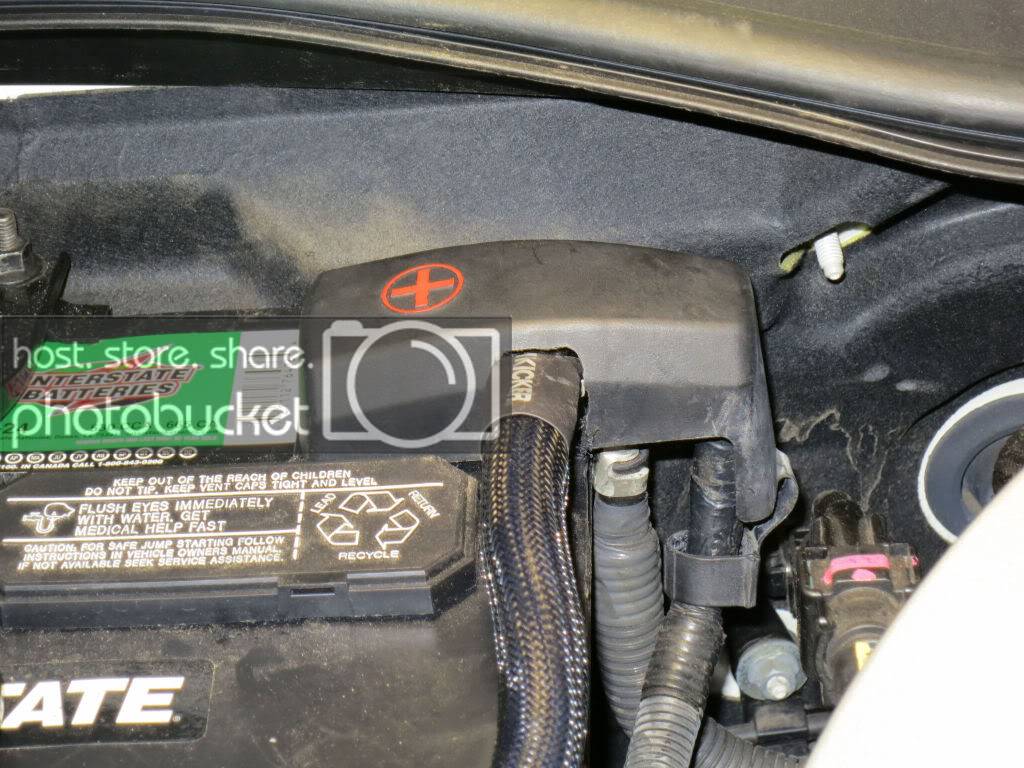

Trimmed the battery terminal cover to allow for the power wire to come out.

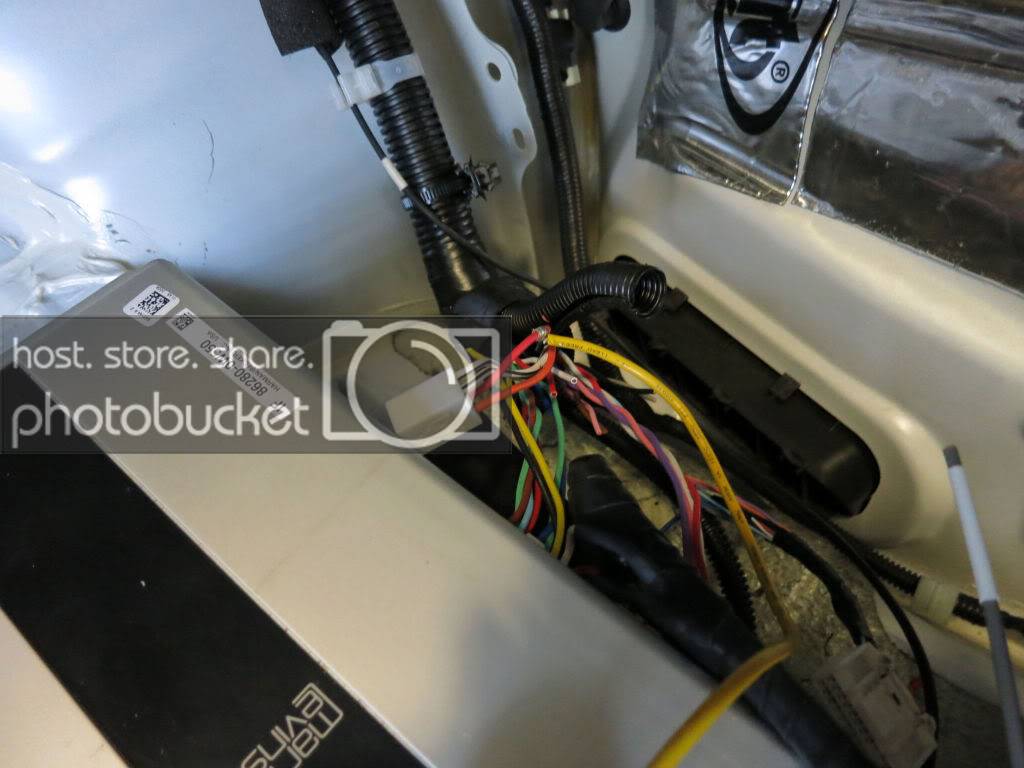

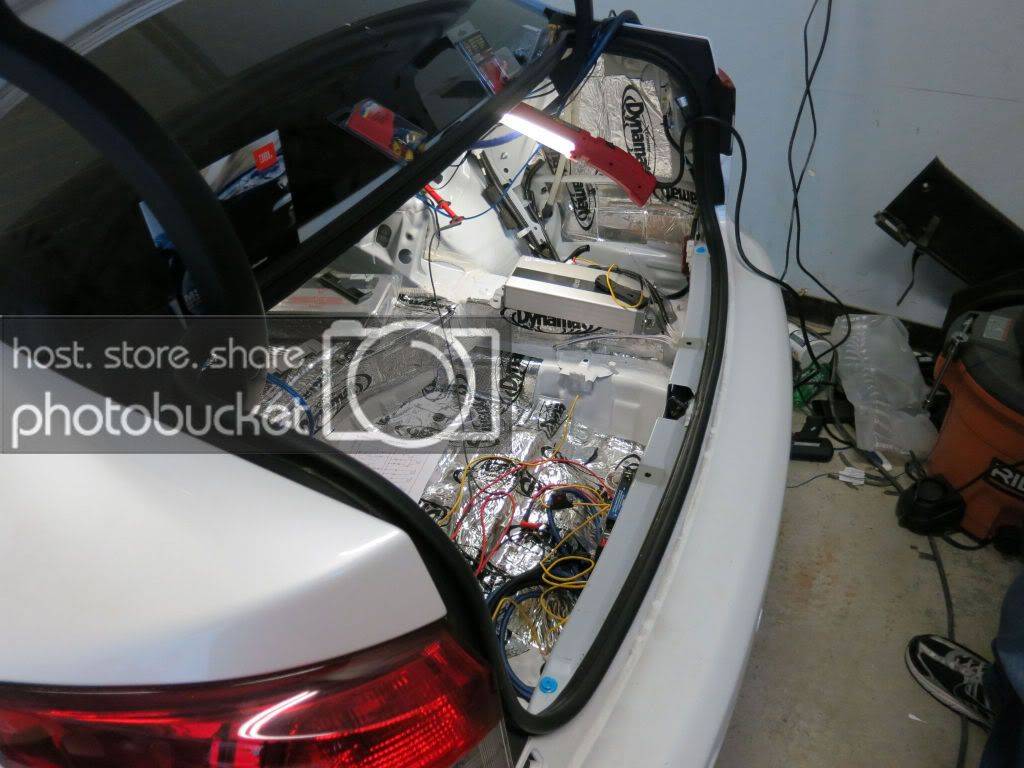

Work in progress pics of the power wire wake up wire and so on.

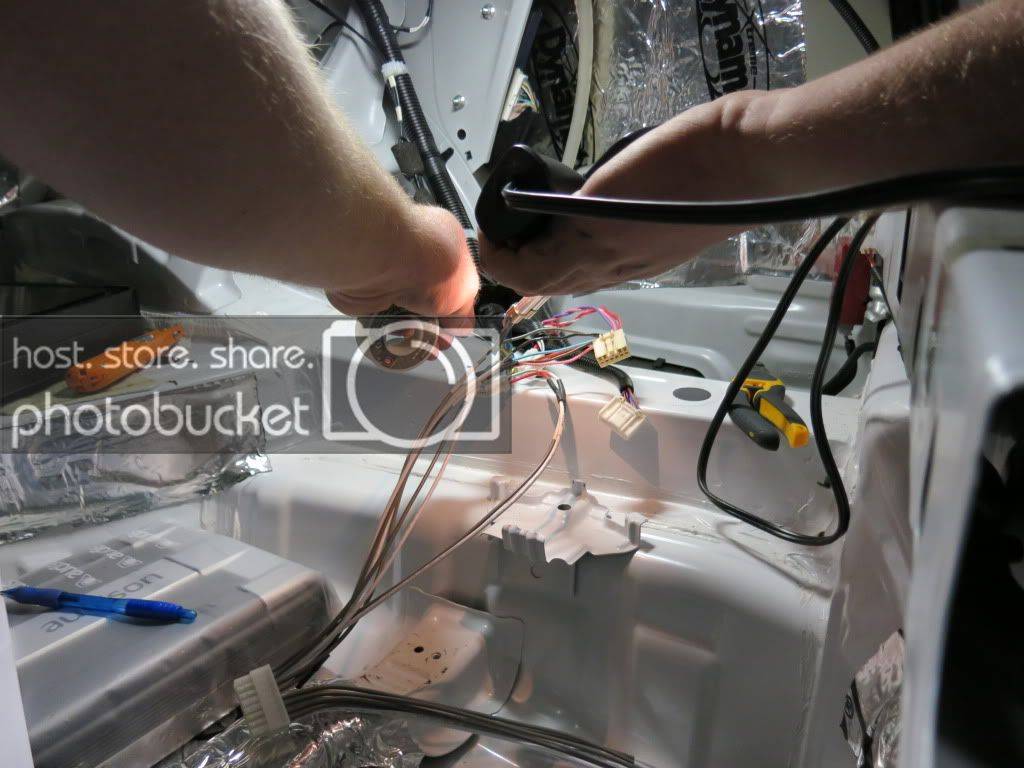

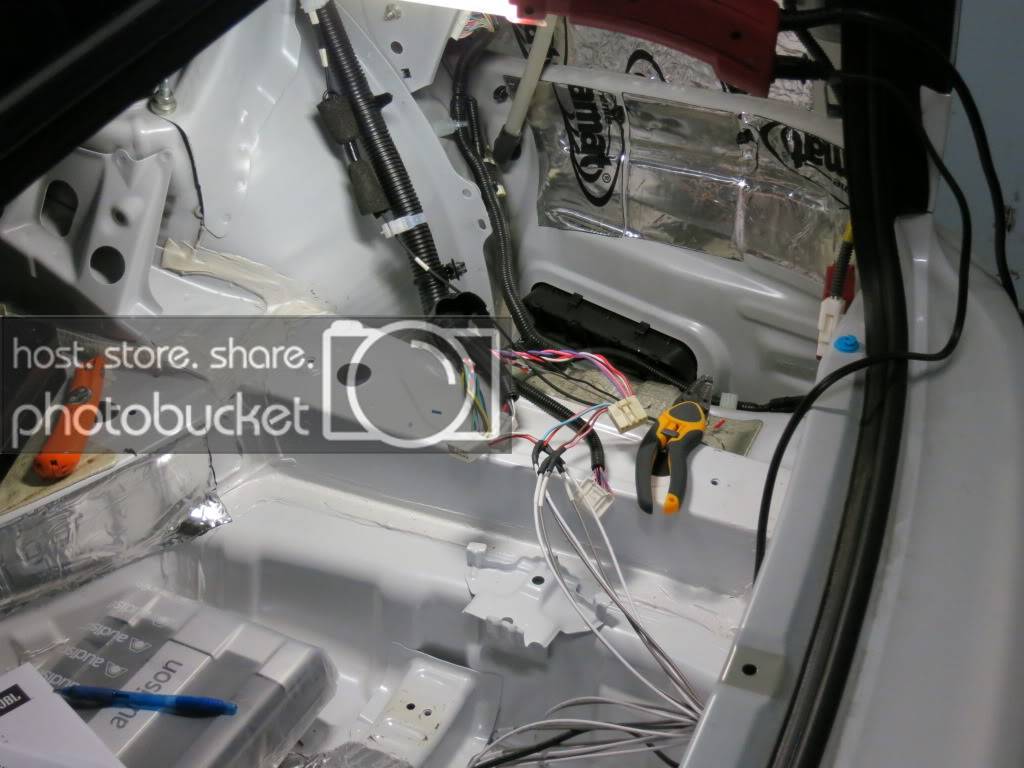

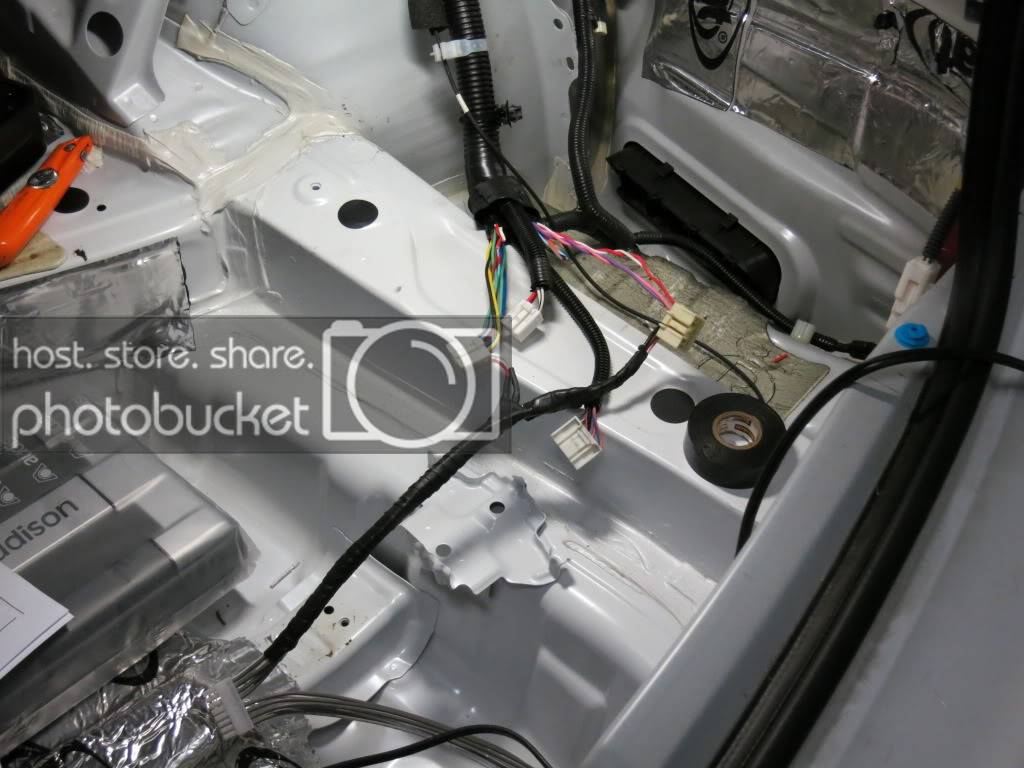

Organizing all the wires, zip tied every 6 inches or so. The two grommets towards the top of the rear seats provide great locations to run wires. NOTE make sure to cover them with some kind ot rubber rap and or shielding.

Labeled all the outputs for the amps as for quick reference.

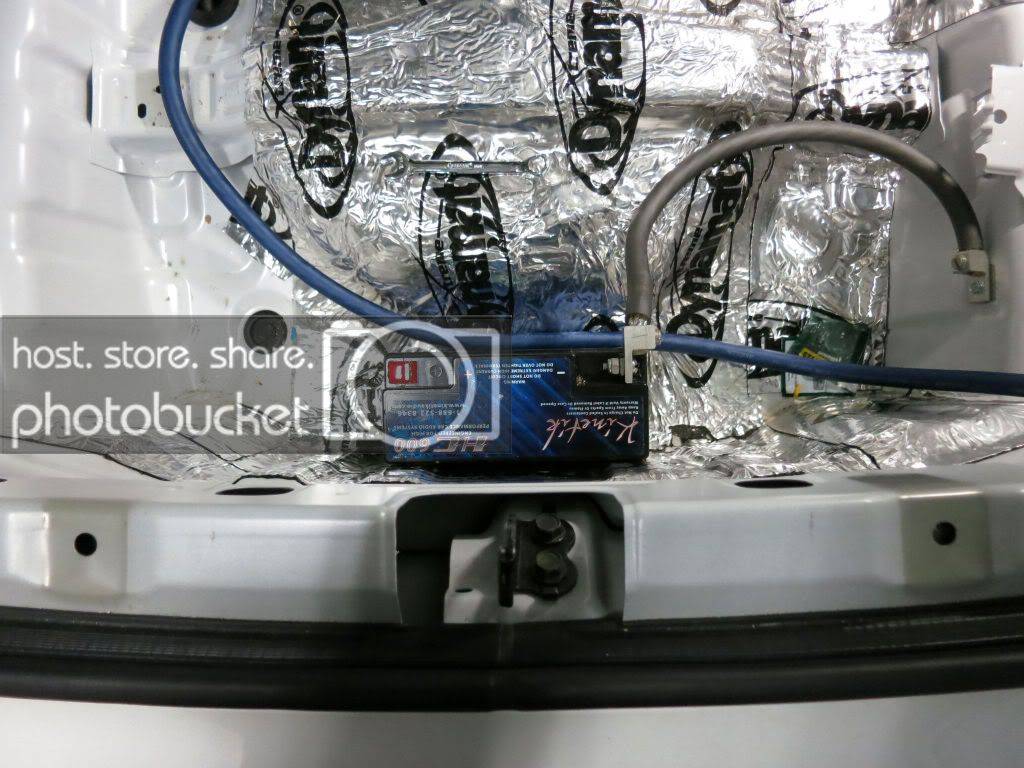

Battery grounded, made sure there was no resistance for this ground.

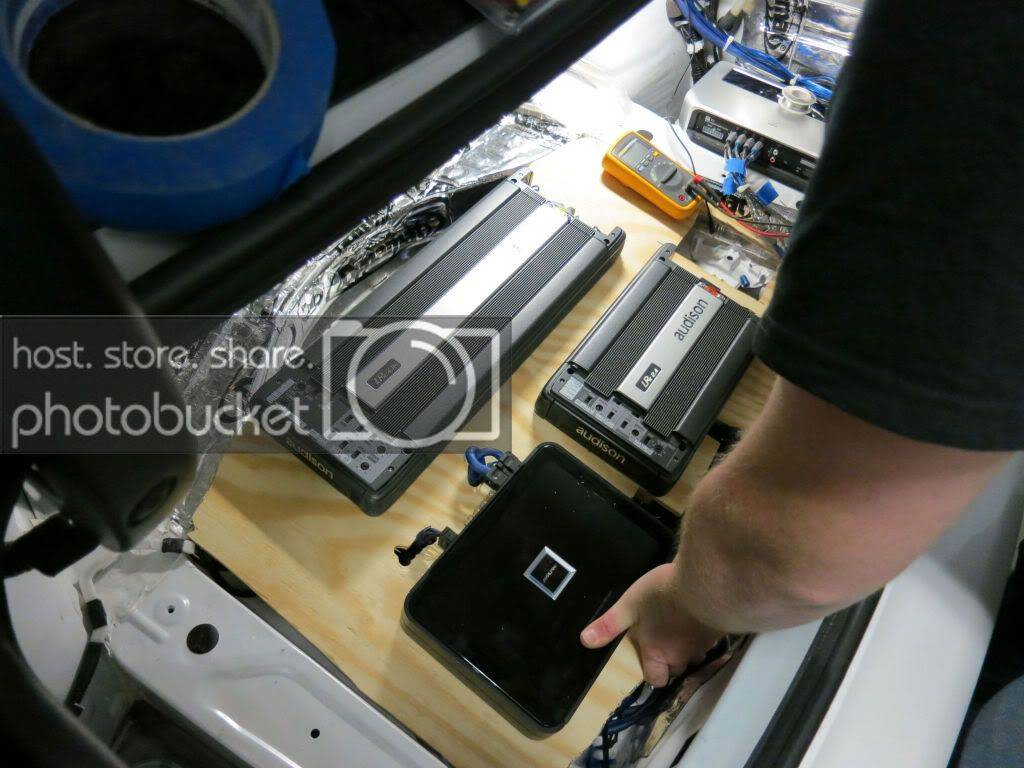

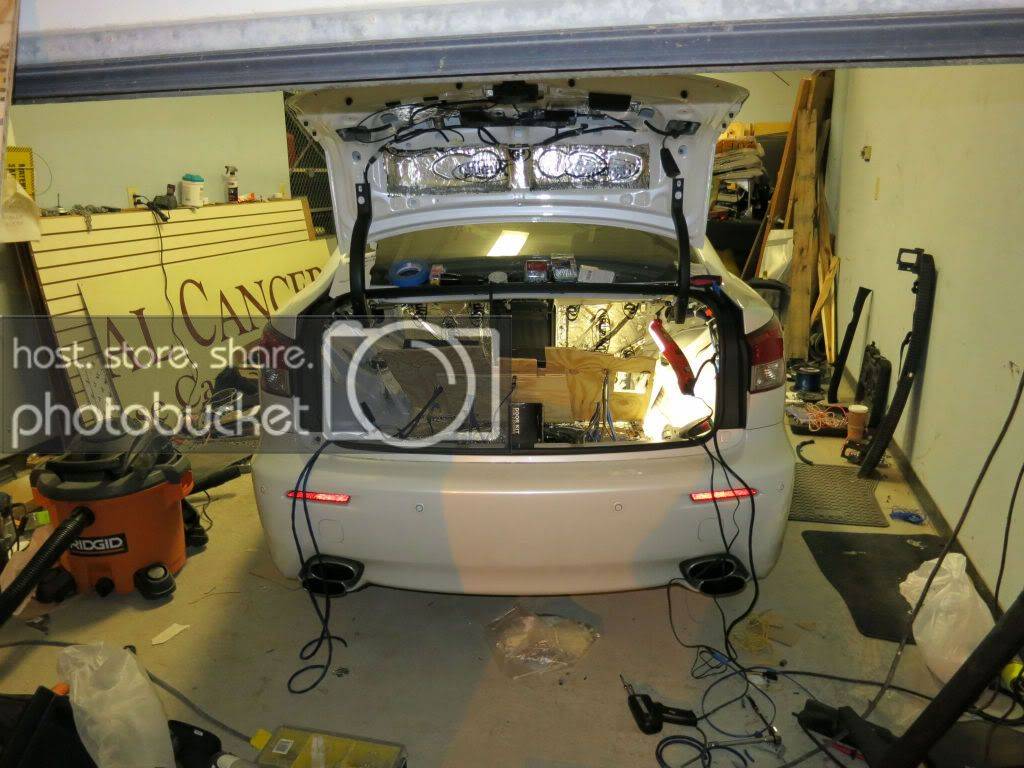

Amps installed on new rack

Owner wanted easy access to his bass knob and radar

Wiring up all the power wires!!



[bigaudiofanatic 10+ year member]

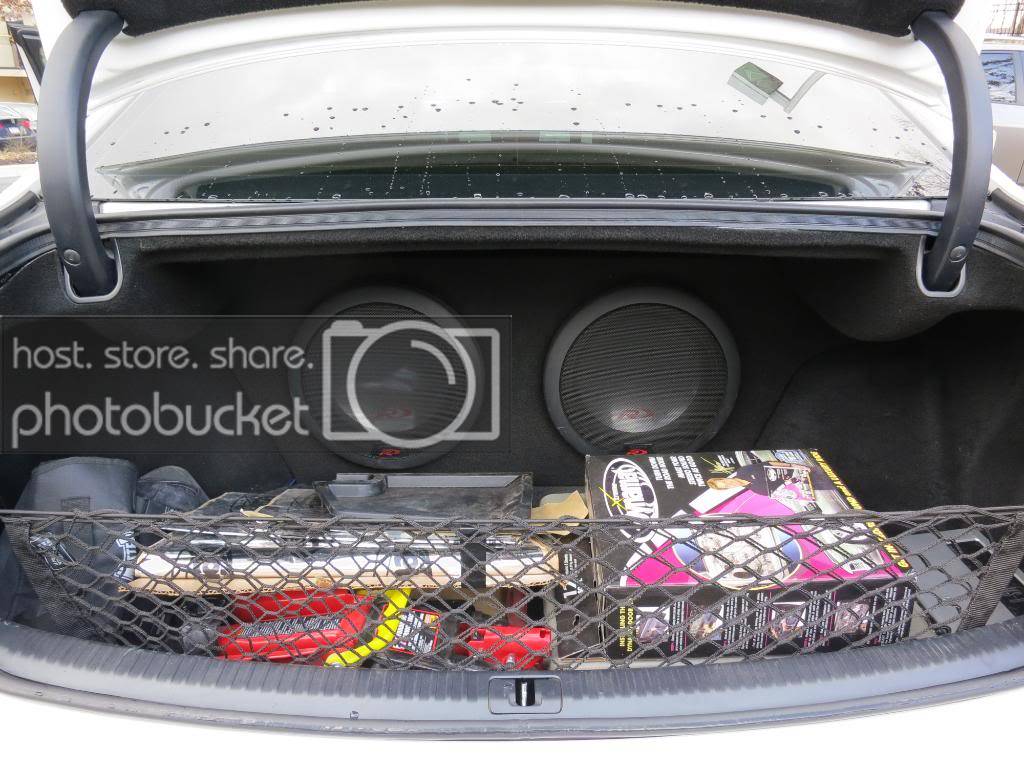

Here are some finished pictures. Will get more when he comes for tuning. I will also check out if adding the sub to the inputs for summing adds anything.

Fuse block was placed on top of the fuse box for a few reasons.

Quick removal is you need to get to fuses.

Held in place with no drilling any holes.

Perfect location

Also the ground wire was upgraded as well, using the stock grounding location only paint was removed and stock bolt.

Subs installed



[bigaudiofanatic 10+ year member]

Inbox cleared out



[bigaudiofanatic 10+ year member]

Website is up

bigAudioFanatic.com



[bigaudiofanatic 10+ year member]

Bump for spring.



[bigaudiofanatic 10+ year member]

Last year I worked on a members z and put the fallowing in:

Kenwood 9980 head unit

JBL MS8

Hertz Mile speakers

Hertz sub

Audison 5.1K amp

The owner wanted even more sound so I came back this week to do "stage 2"

Added:

Focal FPS 21160 amp

Hertz Hi-Energy coaxial speakers"rears"

Kinetick KHC140 battery

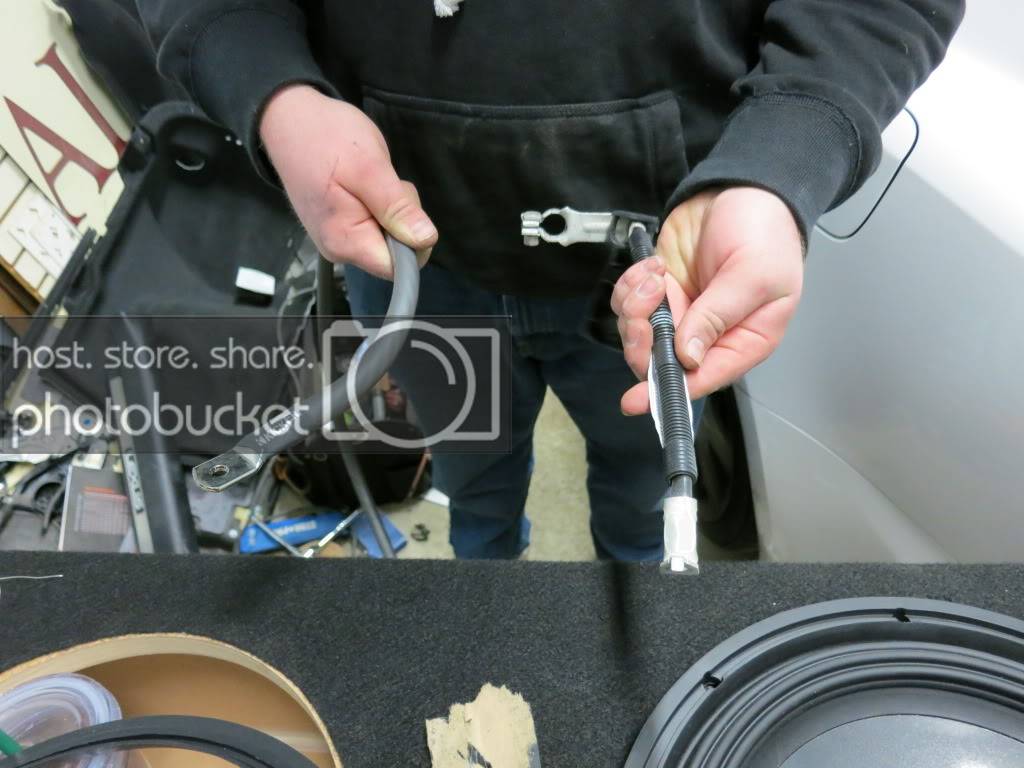

Kicker 0 gauge battery

Stinger fans

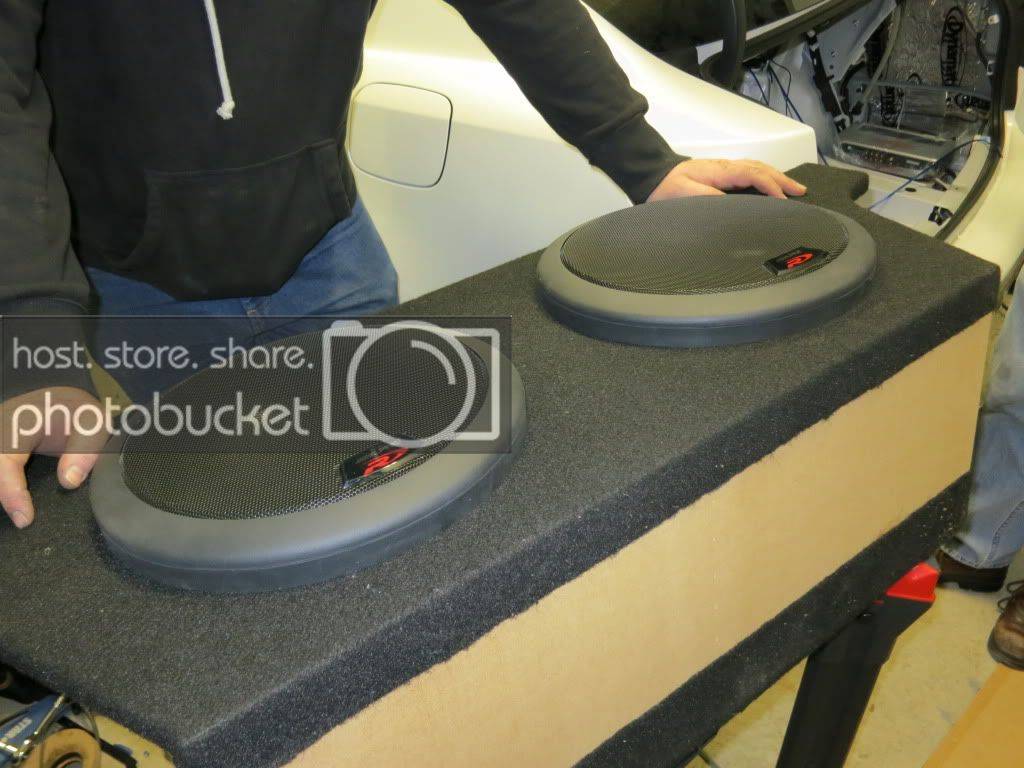

Custom speaker pods

Made the rings

Pulled the carpet off the panels

Started finding the right angle to mout the rings.

Starting to epoxy the supports

So far
