TaylorFade 10+ year member
I fail.
1. Product:
Taramps T-20.2k
2. Specs:
- Number of Channels - 01
- Class of Operation - (D)
- Maximum power @ 12.6 VDC - 1 OHM - 20200 WRMS
- Subsonic Filter (Variable) - High Pass - 5Hz to 50Hz (-12dB / 8th)
- Crossover (Variable) - Low Pass - the 5KHz 50Hz (-12dB / 8th)
- Electronic Diagnostics - (LED indicators):
On - (on)
Clipling - (distortion)
Protection - Protection (short)
- Input Sensitivity - 300mV to 6V
- Input Impedance - 20K OHMS
- Frequency Response - 5Hz to 5kHz
- Low Voltage Power Supply - 10,5VDC
- Maximum Power Voltage - 15VDC
- Consumption at Home - 1 Amp.
- Cons. Maximum Musical @ 12,6VDC - 905 Amp. - Cons. Maximum sinusoidal signal (100Hz) @ 12,6VDC - 1890 Amp.
- Dimensions (WxHxD) - 291 x 56 x 730mm
- Weight - 14Kg
3. Description/Condition:
Just back from repair after the 1 ohm resistive debacle. Good as new. Will certify it before shipping.
I have clamped it exactly one time on batts. 8k rising to ~ 3ohms in the low 12's/high 11's on the AMM-1 in "dyno mode". Did 13k+ @ 1 ohm resistive on caps before it popped. Brazil no likey resistors.
It does big boy power. Note the bolded above. You still need plenty of juice to run this thing. Don't let the size fool you.
4. Price: :
$1,400 shipped.
Open to trades for just about any **** thing. It's just collecting dust. I need a newer, iPod friendly Alpine HU, Korean amps, hookers, blow, whatever...
5. Pictures:

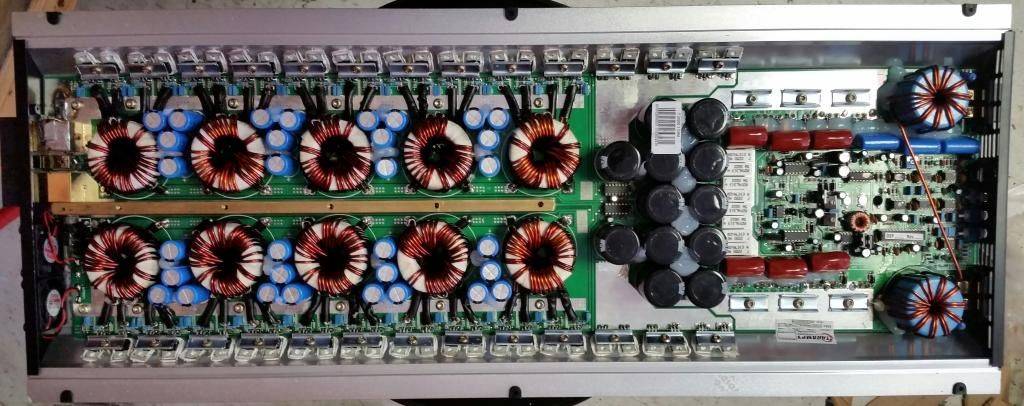

Next to an Ampere 10k prototype.
Taramps T-20.2k
